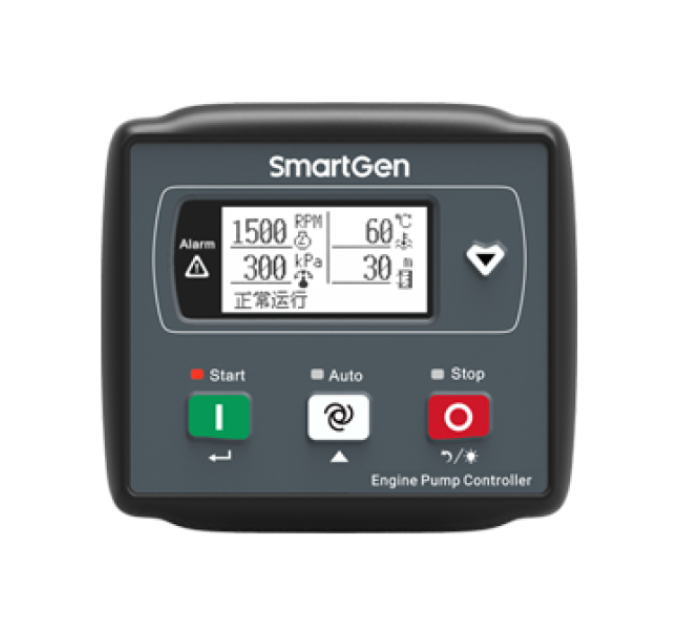

SmartGen APC1700 Engine pump controller

Technical Parameters:
Working PowerRange : DC(8~35)V
Power Consumption : <3W (Standby mode: ≤2W)
Speed Sensor Voltage : 1.0V~24.0V (RMS)
Speed Sensor Frequency : Max. 10,000Hz
Crank Relay Outpu :t 1A DC28V Active Output
Aux. Output : 1~4 1A DC28V Active Output
Digital Input : Two ways (Auxiliary)
Overall Dimension : 96*86*47
Installation Dimension : 78*66
Working Temperature : (-20~+70)℃
weight : 0.17kg


Product Overview:
APC1700 Engine Pump Controller is used for diesel engine-driven water pump units to realize water pump start/stop, data measurement, maintenance, alarm protection and “Three Remotes” (remote control, remote measurement, and remote communication). It is compatible with various diesel engine-driven water pump units.

APC1700 Engine Pump Controller adopts 32-bit micro-processor technology, which can realize functions of precise measurement for many parameters, set value adjustment, timer and threshold setting, etc. The parameters can be adjusted from the controller panel, and they can be adjusted and monitored on PC via RS485 port. The controller can be widely applied to diesel engine-driven water pump units control system with its small size, compact structure, simple wiring, and high reliability.

ERFORMANCE AND FEATURES
Main features are as follows:
— LCD screen with 132x64 resolution and backlight; Optional Chinese and English languages; Simple operation interface;
— Screen protection is hard screen of acrylic material with better wear-resisting and scratch resistant quality;
— Silicon front panel and buttons with strong adaptive capacity of high/low temperature environment;
— With RS485 communication port, it can realize “Three Remotes” function via MODBUS protocol;
— 5 ways of analog sensors, including 3 resistance type sensors, 1 current type sensor and 1 multifunctional sensor (resistance/current/voltage type), which can precisely detect data of engine temperature, engine oil pressure, fuel level, outlet pressure, pipe pressure, flow rate, head, etc.;
— Provide multiple common temperature, pressure, and level sensor curves, and self-defined sensor curve is also available;
— Protection functions, including high engine water temperature, low engine oil pressure, engine over speed, high outlet pressure, high pipe pressure, over flow, etc.;
— Remote start/stop function, and support the pump unit start/stop control via external switch;
— Pipe pressure start/stop function enables it to automatically start/stop the unit according to the preset pipe pressure under auto mode;
— High outlet pressure return to idle speed function can control the unit run at idle speed when the outlet pressure exceeds the set value;
— Crank disconnect conditions (speed, oil pressure) are optional;
— Wide power supply range DC (8-35V), which can suit different starting battery voltage environment;
— Event log function, which can continuously save 99 records;
— Heater, cooler and fuel pump control functions;
— Maintenance function, maintenance time due action can be set;
— Plastic sealing gasket is designed for enclosure and front panel can reach IP65 protection level;
— Modular design, anti-flaming enclosure, embedded mounting on the outside of control panel, compact structure and easy installation.
