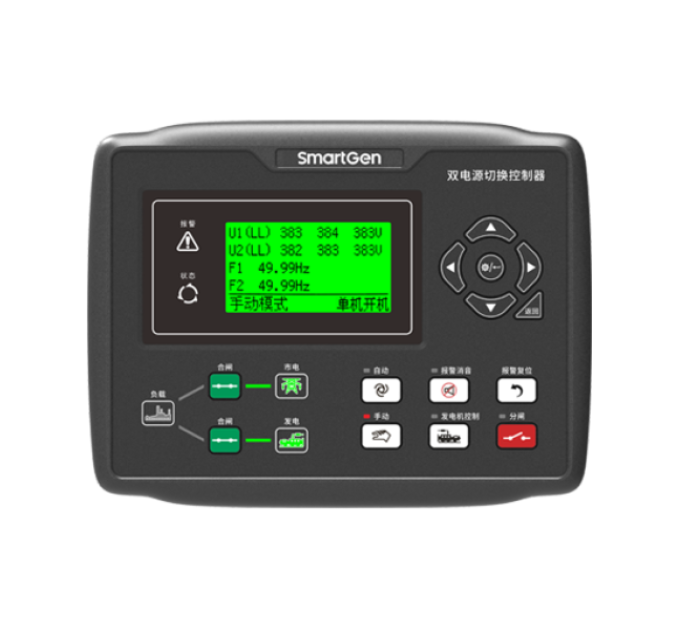

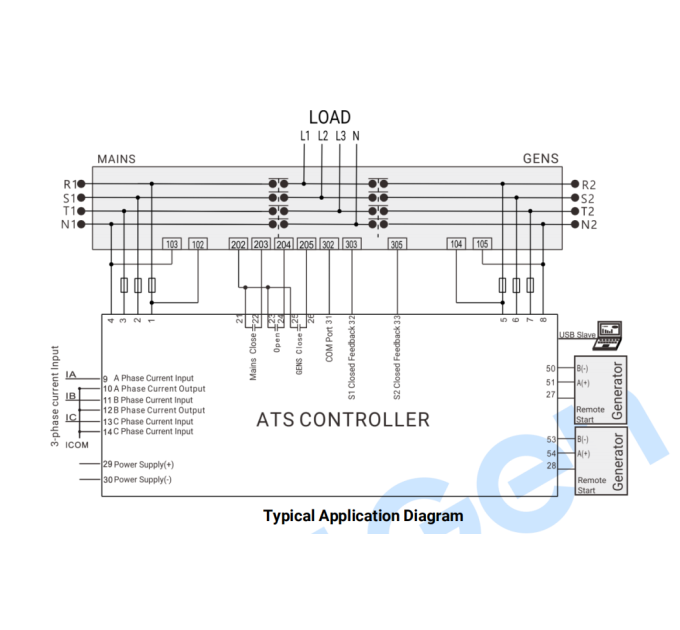

SmartGen HAT9420LT Dual power ATS controller

Technical Parameters:
Working PowerRange : DC(8-35)V
Overall Dimension : 242*186*54
Installation Dimension : 214*160
Working Temperature : (-40~+70)°C
weight : 0.98kg


Product Overview:
HAT9420LT Dual Power ATS Controller is made by microprocessor as its core, which can accurately detect 2-way-3-phase voltage, make accurate judgment for occurred abnormal voltages (over/under voltage, loss of phase, over/under frequency). This controller is applicable for Mains-Gen power supply system and can be used for transfer switch of PC class. It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, electrical devices, automatic control and testing system etc.


PERFORMANCE AND CHARACTERISTICS
——LCD LCD 132x64 pixel with backlight, multiple language display (Simplified Chinese, English, Other), push button operation;
——LED lamp can directly display current ATS close/open status, power status and whether load is power on;
——S1 master, or S2 master can be set; Auto Transfer Auto Restore and Auto Transfer Non Restore are fitted for master power;
——Collect and display 2-way 3 phase voltage, frequency, and phase sequence status
——Collect and display load active power, reactive power, apparent power, power factor and current;
——Independent overcurrent warning or fault alarm functions for S1/S2;
——NEL trip function is fitted;
——Display of accumulated active power, accumulated reactive power, accumulated close times is fitted;
——Each phase voltage of S1/S2, wave distortion rate of load current and 3-21 odd times harmonic percentage can be measured;
——Display of current power supply time and S1/S2 continuous power supply time is available;
——Over/under voltage, over/under frequency, loss of phase, reverse phase sequence monitoring functions are fitted;
——Auto/Manual transfer is fitted, so that breaker can be forced to close or open in manual mode;
——All parameters can be configured on site; password is used to verify in case of non professional wrong operation;
——Custom start screen function is fitted;
——Commissioning can be done manually on site to conduct genset start/stop operations;
——Switch re-close and power-off re-close functions are fitted;
——Close output can be set to pulse or continuous output;
——2 circuit N wire isolated design;
——Real time clock display, and event log function, which can record 200 data circularly;
——Black box function, which can record 5 sets of events of ATS transfer, and 60 detailed data of 50s before one set occurs and 10s after the event;
——Scheduled run/not run function for genset, run for once, run monthly or weekly, and run on load or unload can also be set;
——Two gensets can be controlled and single run, master-slave run, and simutaneous run can be realized;
——USB slave port, provides convenience for on-site debugging;
——USB master port, provides convenience for software upgrade, configureation import, running status/event log/black box/configuration export;
——2-way RS485 isolated communication port, makes the controller has remote control, remote measuring by ModBus-RTU; it can remote control 2 genset start/stop, ATS close and open, read the status information of HGM8151Z;
——ETHERNET port, makes the controller has remote control function by ModBus UDP/IP; it can remote control genset start/stop, configure the genset start mode functions;
——Suitable for multiple AC system types (3P4W, 3P3W, 1P2W, 2P3W);
——Master and backup power supply can be set; ATS can normally work if one circuit is normal;
——Controller uses metal clips to fix;
——Modular structure design, anti-flammable ABS shell, pluggable wire terminal, built-in installation method with compact structure and easy installation.
