Technical Parameters:
Battery Voltage 24V
Max. Charging Current 5A
Rated Input Voltage (100~240)V
Max. Input Voltage Range (90~280)V
AC Input Frequency (50/60)Hz
Max. Input Current 2.5A
No-Load Power Consumption <3W
Operating Mode Two segments
Maximum Efficiency 87%
Operating Temp. (-30~+55)℃
Storage Temp. (-40~+85)℃
Case Dimensions(mm) 143*92*52

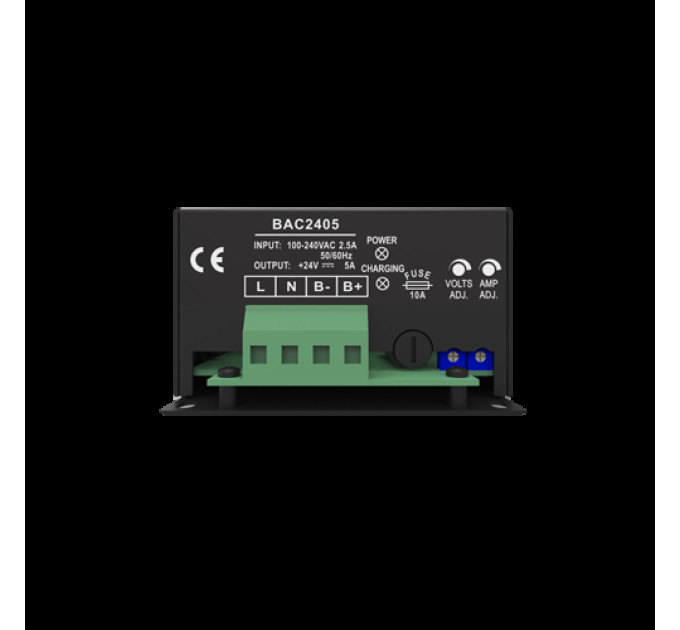

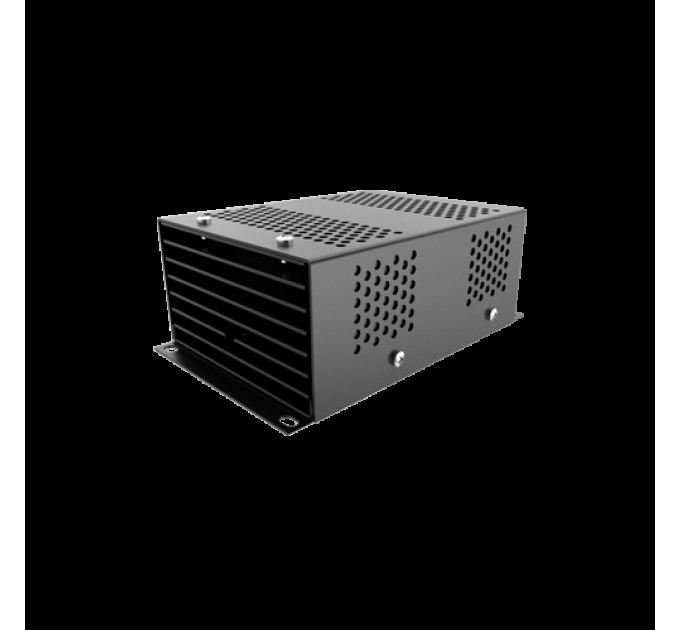

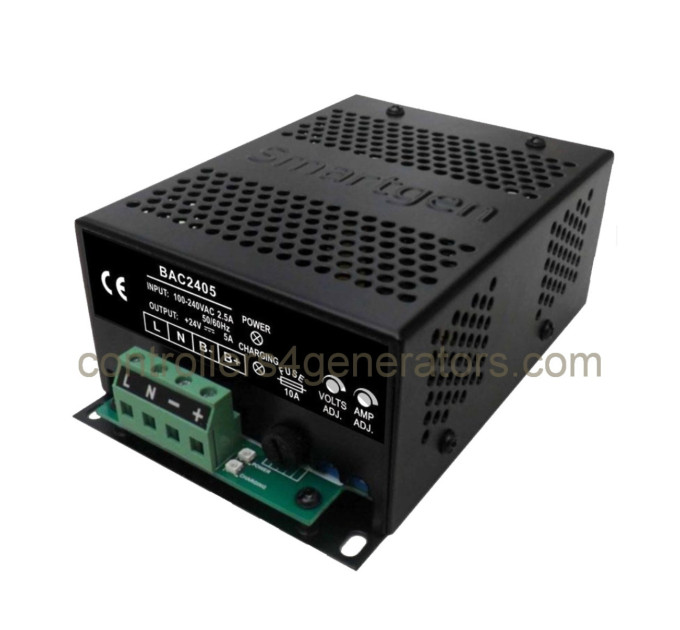

Product Overview:
Fit with up-to-date power supply device, float charger BAC2405 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 24V lead-acid batteries.
PERFORMANCE AND CHARACTERISTICS:
1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3. Built-in current protective circuit for short-circuit protection and reverse connection protection;
4. Charging voltage and current can be adjusted via potentiometer on the spot;
5. Suitable for 24V storage battery and the rated current is 5A;
6. LED display: Power indication and charging indication.
