Technical Parameters:
Working PowerRange : AC24V/DC(8-35)V
Power Consumption : <7W (Standby mode: ≤2.5W)
Overall Dimension : 209*189*59
Installation Dimension : 188.5*165.5
Working Temperature : (-25~+70)˚C
weight : 0.9KG
Product Overview:

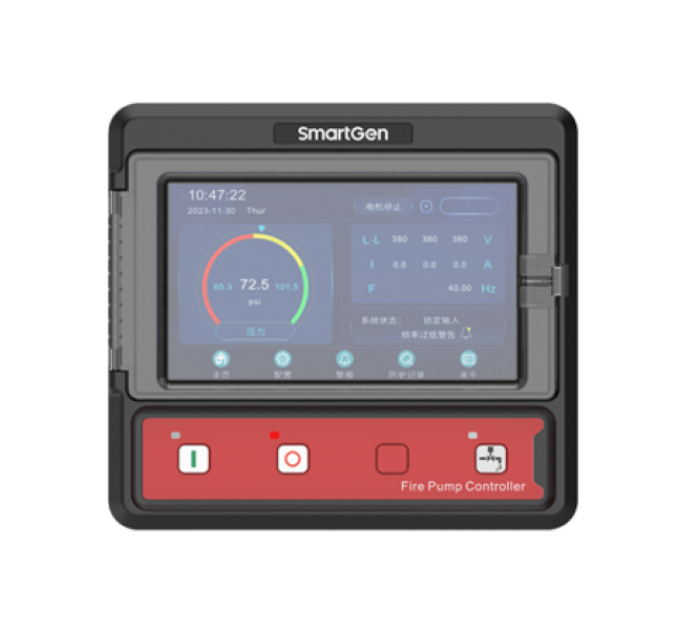

The FPC1000M Electric Fire Pump Controller is used for starting or controlling the fire pumps driven by motors. It can manually start the fire pump through the local start button or automatically start the fire pump by detecting the pressure drop of the automatic fire sprinkler system. The controller is equipped with a pressure sensor. The fire pump can be manually stopped through the local stop button or automatically stopped after the timer ends, which can be programmed on site. In both cases, the fire pump can stop only when all the starting reasons disappear.
The FPC1000D Electric Fire Pump Controller adopts 32-bit microprocessor technology, which realizes precise measurement, fixed value adjustment, timing, and threshold setting functions for multiple parameters. Most parameters can be adjusted from the front panel of the controller, and all parameters can be adjusted by PC via USB or RS485 interface. It integrates digital, intelligent, and network technologies, and uses a 7-inch color LCD graphical display to display Chinese and English, which is easy to use and reliable to operate. With compact structure, easy connection system and high reliability, it is widely applied for various types of electric fire pump systems.
The FPC1000T Electric Fire Pump Controller is composed of a microprocessor that can accurately detect two lines of voltage, make accurate judgments and control outputs for abnormal voltage (overvoltage, undervoltage, overfrequency, underfrequency, loss of phase, phase reversal). It realizes the automatic and intelligent transfer of ATS. And the controller integrates digital communication and realizes good human-machine interaction.
PERFORMANCE FEATURES
——7-inch large size color LCD screen, resistive touch screen, which supports one-click switching between Chinese and English;
——Collect and display three-phase AC voltage, current, and frequency;
——With detection functions of overvoltage, undervoltage, phase loss, phase reversal, voltage imbalance, overfrequency, underfrequency, overcurrent, undercurrent, grounding;
——Real-time display of alarm information from the master control module;
——Support multiple types of sensors, including resistance type, 4-20mA current type, 0-5V voltage type sensors with adjustable sensor parameters;
——Manual test function for fire motor to start and stop;
——Input lock function, the start and stop of motor can only be controlled by start and stop buttons on the panel when this function is active;
——All parameters can be programmed on site, with two-level password verification to prevent misoperations by non-professionals;
——Wide DC power supply range of (8~35)VDC;
——RS485 communication interface, and USB device interface for parameter configuration of upper computers and reading of histories;
——Real-time alarm event recording function, which can record up to 500 pieces of data cyclically;
——Timed recording function, which can record system pressure, voltage, and current for up to 500 pieces of data cyclically by the preset scheduled intervals;
——Display the number of start times, total accumulated running time, previous accumulated running time, and current accumulated running time of fire motors;
——Real-time clock display;
——Support multiple start control methods of fire motor;
——Adjustable screen brightness for display module based on the different requirements of environment;
——All parameters of the master control module can be adjusted, and the display module communicates with the master control module via the CANBUS interface;
——USB Type-C interface for convenient parameter debugging and program upgrade on site;
——USB host interface for exporting alarm event records and timed record data;
——Rubber sealing gasket design between the enclosure and controller screen for IP65 waterproof performance;
——Controller can be fixed by metal screw clamps;
——With modular structure design, pluggable terminals, embedded mounting, and compact structure, it is easy to install.
