Technical Parameters:
Working PowerRange : DC(8~35)V
Overall Consumption : ≤2.6W
Overall Dimension : 107.6* 93*60.7
Working Temperature : (-40~+70)°C
weight : 0.24kg
Product Overview:

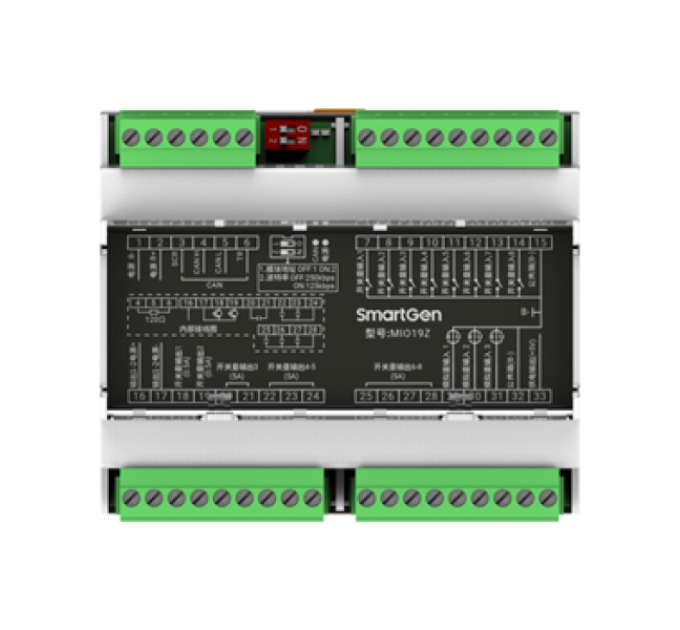

MIO19Z Integrated Expansion Module is an integrated input/output module, which can connect with master controller HGM8151Z/HGM8152Z via CANBUS and all the parameters and data can be set and viewed through master controller. It applies to marine main propulsion units, main generator units, emergency units or pumping units.
PERFORMANCE AND CHARACTERISTICS
Its main characteristics are as follows:
——8 digital inputs, the specific functions can be set by mater control;
——2 isolated transistor outputs, Aux. outputs 1~2, the specific functions can be set by mater control;
——6 volt-free relay outputs, Aux. outputs 3~8, the specific functions can be set by mater control;
——3 analog sensor inputs, the input signals of resistance-type, voltage-type and current-type are optional;
——Modular design, compact structure, small volume and easy to use.
