Technical Parameters
Case Dimensions(mm) 105mmx72.5mmx34mm
Product Overview:

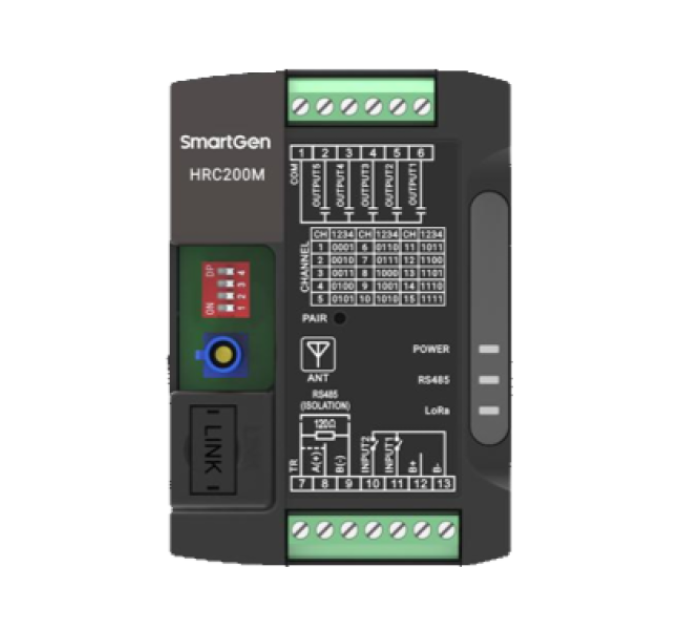

HRC200M is the wireless receiver of the HRC200 industrial remote control system. Equipped with a LoRa wireless transmission chip, it communicates with the HRC200R remote transmitter over distances of more than 200 meters. Connected to the engine controller, the HRC200M receives remote commands to execute functions including engine start, stop, load, unload, and emergency stop. Its fully sealed IP65-rated design provides excellent protection against dust and water, delivering reliable performance in harsh operating conditions such as field operations, mining, and urban construction.
PERFORMANCE AND CHARACTERISTICS
——With RS485 interface, 5 output ports and 2 input ports, can control engine controller via RS485 interface or relay output port;
——With power, RS485, LoRa communication status indicator; 15 optional communication channels;
——Supply range DC (8~35)V;
——Can set its parameters via PC;
——Modular structure design, anti-flaming ABS plastic shell, light weight, compact structure and easy installation;
——Standard Π type 35mm guide rail installation or screw installation is applied.
