Technical Parameters:
Working PowerRange : DC(18~35)V
Overall Dimension : 107.6*93*60.7
Working Temperature : (-25~+70)˚C
weight : 0.27kg
Product Overview:

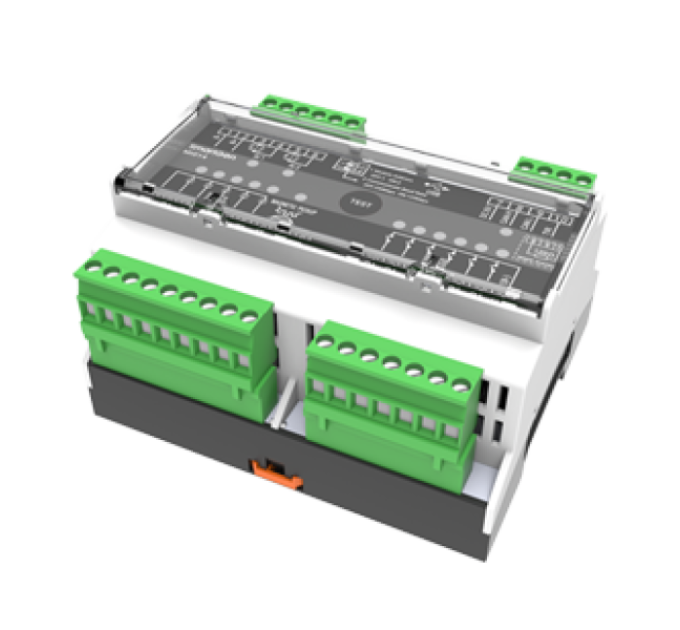

MIO14 Integrated Expansion Module is an integrated input/output module, which can connect with master controller HMC9100A/HMC9100S via CANBUS and all the parameters and data can be viewed through master controller. It applies to marine main propulsion units, main generator units, emergency units or pumping units.
PERFORMANCE AND CHARACTERISTICS
Its main characteristics are as follows:
——1 speed sensor can accurately collect speed;
——6 digital inputs, the specific functions can be set by mater control;
——5 relay outputs, Aux. output 1~5, the specific functions can be set by mater control;

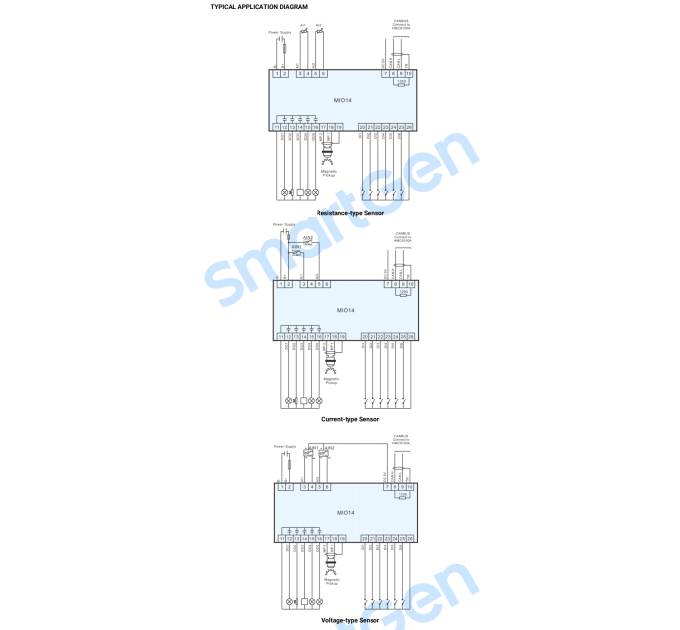

——2 analog sensor inputs, the input signals of resistance-type, voltage-type and current-type are optional;
——Modular design, compact structure, small volume and easy to use.
