Technical Parameters:
Working PowerRange : DC(8~35)V
Overall Dimension : 209*166*45
Installation Dimension : 186*141
Working Temperature : (-40~+70)°C
weight : 0.754kg
Product Overview:

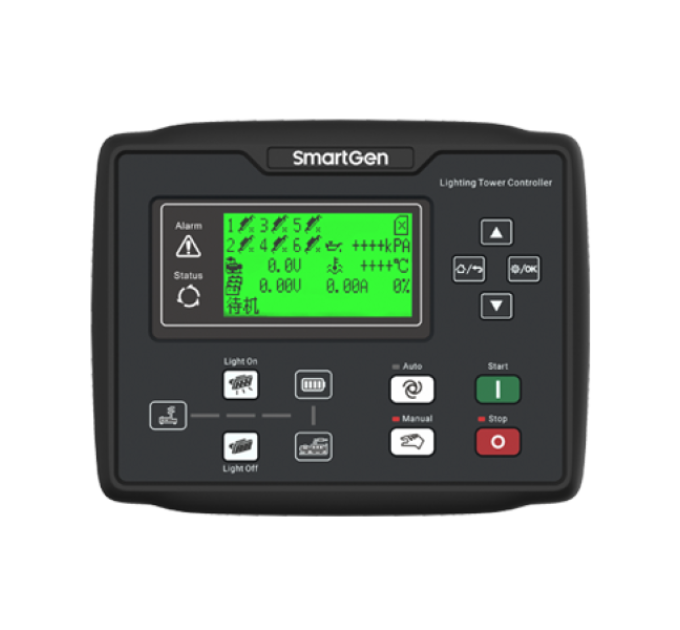

ALC736/ALC736-4G Hybrid Energy Lighting Tower Controller is used for automation control systems of single lighting tower unit to achieve not only scheduled/remote/SMS/light sensor/sunrise/sunset light on/light off, as well as light sensor + scheduled light on/light off, light sensor + sunrise/sunset light on/light off functions. Four configurations of PV + BMS + Gen/Mains, PV + BMS, Gen/Mains + BMS, and Gen/Mains are supported to apply to different applications. Meanwhile, the controller is applicable not only to AC lighting tower genset, but also to DC lighting tower genset. It integrates with digitalization, intellectualization and network technology and fits with LCD graphic display, optional Chinese, English and other languages interface (via language pack), and it is reliable and easy to use.
ALC736/ALC736-4G Hybrid Energy Lighting Tower Controller applies 32-bit microprocessor technology, realizing precise measuring of various parameters, value adjusting, and timing, threshold adjusting etc. functions. A majority of parameters can be adjusted from the front panel. All parameters can be adjusted via USB port on PC. With compact structure, simple wiring and high reliability, it can be used in various automation systems of lighting tower unit.
PERFORMANCE AND CHARACTERISTICS
Its main characteristics are as follows:
─ 132x64 LCD with backlight, low temperature heating, optional Chinese, English and other multiple languages interface, which can be chosen at the site, making commissioning convenient for factory personnel;
─ Wide operating temperature range (-40°C~+70°C) can suit for extremely harsh environments;
─ With RS485 and CAN communication ports, the controller can connect with external devices (PV device, battery pack, PV-BMS all-in-one (custom protocol in need) to get and control the status of external devices in real-time;
─ 4 kinds of system configuration 0/1/2/3 are optional, which can be applied to different occasions;
─ With lamp fault check function;
─ Reducing the number of the lighting lamps and luminance along with the fuel level drops;
─ The low battery SOC decreases the lighting lamps and luminance functions;
─ Starting battery under voltage condition can start genset to charge the battery;
─ With low battery SOC power-on charging function, and three modes (economic/normal/power saving) are selectable;
─ With lighting tower mast and tower head control function;
─ The luminance adjustment function can set the luminance for different time periods;
─ Multiple light on/light off modes for selection, scheduled light on/light off, remote/SMS/sunrise/sunset/ light sensor light on, light sensor + scheduled light on, light sensor + sunrise/sunset light on;
─ Be compatible with both AC and DC genset application, 3P4W, 3P3W, 1P2W, 2P3W AC power system with 50Hz/60Hz frequency are supported, and also suitable for 0~75V DC power system;
─ Collect and display parameters including generator 3 phase voltage and current, frequency, power, DC voltage and current, etc.
─ Generator with over /under voltage, over/under frequency, over current, over power and reverse power functions;
─ Precise collect engine parameters;
─ Control protection function: to realize the automatic open/close of lamps, automatic start/stop of diesel genset and fault indication and protection functions;
─ Up to 6 lighting lamps are under control and there’s feedback of 6 lamps on LCD, the time interval of light on can be set;
─ With ETS solenoid hold, idle speed control, preheating control, speed up/down control functions, which are relay outputs;
─ Parameter setting function: parameters can be modified by users and cannot be lost even in case of power outage; most of them can be adjusted from the front panel of the controller and all of them can be modified on PC by USB port;
─ 4 flexible sensors can be set to temperature, pressure, level and light sensor;
─ Multiple temperature, pressure, and fuel level sensor curves can be used directly, and custom sensor curve can be done; among which Flex. sensor 4 can connect to resistance/pressure/current type sensor;
─ Multiple crank disconnect conditions (gen frequency, speed, engine oil pressure, DC voltage) are optional;
─ Wide power supply range DC (8~35)V, suitable for different starting battery voltage environment;
─ Event log, real-time clock, scheduled start/stop (start the genset once a day/week/month) functions;
─ Alarm data analysis (black box) function, which allows to record the genset data of 5 alarms;
─ PLC function is fitted;
─ CANBUS interface can connect with J1939 ECU engine, which can not only monitor the normal data of ECU engine (like water temp., oil pressure, speed, and fuel consumption), but also control genset start/stop and high/low speed via CA
