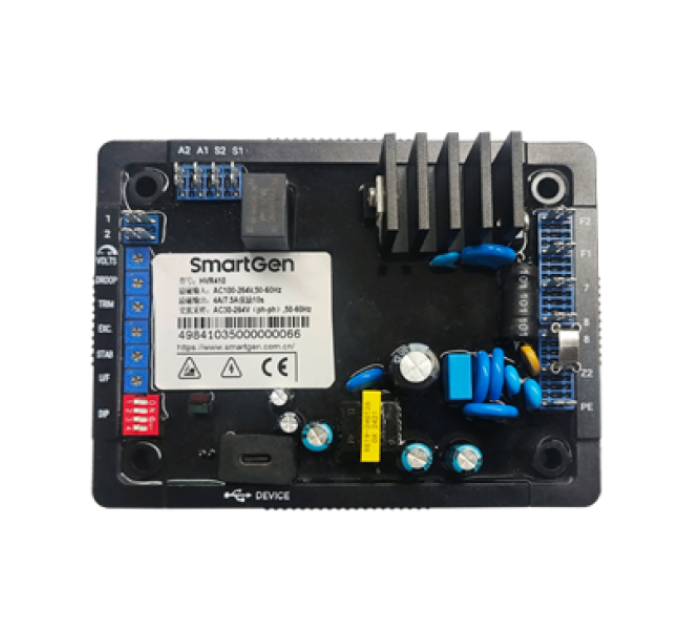

SmartGen HVR410 Digital voltage regulator

Technical Parameters:
AC Voltage Accuracy: 1%, THDu < 5%.
Overall Dimension 144mm x 109mm x 43mm
Working Temperature (-40~+70)ºC
Working Humidity (20~95)%RH
Storage Temperature (-40~+85)ºC
Weight 0.35kg
Installation Fixed by screws
IP Rating IP20


Product Overview:
HVR410 Digital Voltage Regulator is designed for adjusting the field current of brushless AC synchronous generator, which can be applied to generators with the excitation system of AUXW and SHUNT. The regulation mode of the regulator is automatic voltage regulation (AVR). It has USB interface for operation.
The product adopts 32-bit micro-processor technology, which can achieve precision measurement of multiple parameters, protection threshold adjustment, real-time data monitoring and analysis, flexible and comprehensive fault protection, etc. All parameters can be read and configured on PC via USB interface, while some parameters can be manually adjusted using the on-board potentiometer. It features compact structure, simple connections and high reliability.

PERFORMANCE FEATURES
Main features are as following:
- Excitation regulation mode: automatic voltage regulation (AVR);
- Over-excitation limit, U/F limit function is fitted;
- Soft start function is fitted;
- PID algorithm for excitation regulation;
- The output target value can be adjusted through analog voltage/resistance input;
- Two ways to adjust voltage: potentiometer, parameters configuration on PC;
- 1-way CT, and the rated secondary current of CT is 5A;
- Excitation power supply: voltage input is (100-264) VAC;
- Continuous field current is 4A, maximum short-time current is 7.5A for 10s;
- With load compensation function (LCF);
- Droop function: parallel running generators can automatically allocate reactive load sharing by the droop function;
- Line drop compensation function;
- 1-way of (-10-10)V analog voltage input, 1-way of (0-6000) Ω analogy resistance input;
- Suitable for AC systems of 3P3W, 3P4W, 2P3W and 1P2W at rate frequency between 50Hz/60Hz;
- Detect generation voltage harmonic THDu, generation current THDi, and 1st-15th harmonics;
- Generation voltage/current are measured as true RMS;
- Collect and display excitation voltage, field current, generator voltage, current, frequency, power, etc.;
- Function of heat sink temperature detection and alarm protection;
- Protection and detection function: gen. over/under voltage, gen. over/under frequency, waveform distortion, excitation over voltage, excitation overcurrent, rotating diode fault, etc.;
- Real-time data curve analysis can be done via PC software, which can be used to adjust PID parameters;
- All parameters can be configured on PC via USB interface;
- Rated voltage, droop, excitation protection, stability adjustment and under frequency protection can be adjusted via the on-board potentiometer;
- It can be applied to all types of brushless AC synchronous generators with the excitation system of AUXW and SHUNT;
- Event log function can cyclically record 999 events based on the running time;
- Black box function enables it to record 5 groups of fault alarm data cyclically before or after the alarm occurs;
- Modular design, pluggable terminal, screw fixing, compact structure and easy installation.
