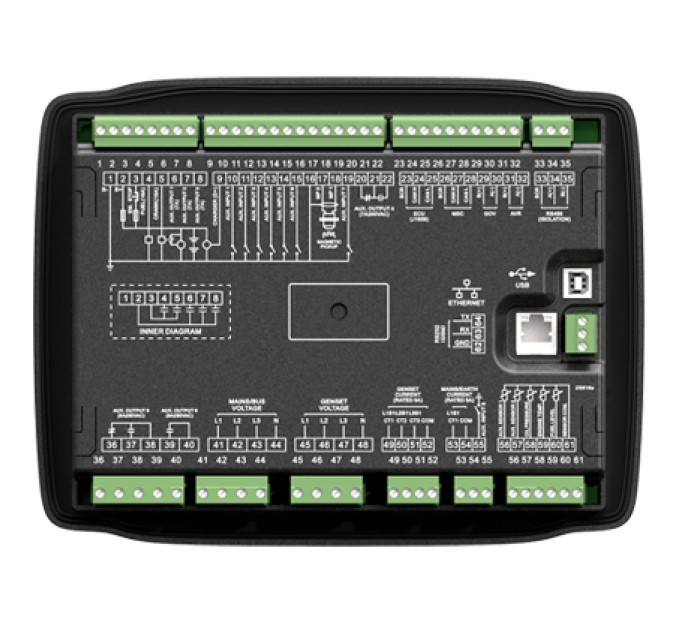

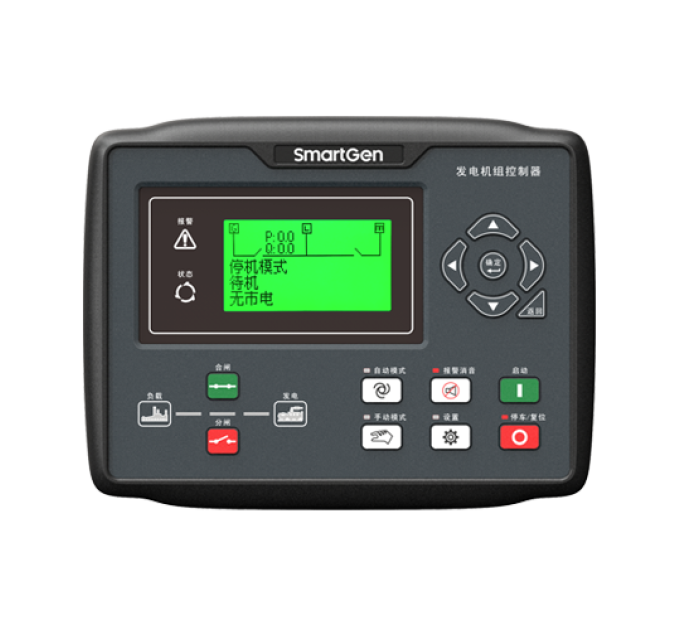

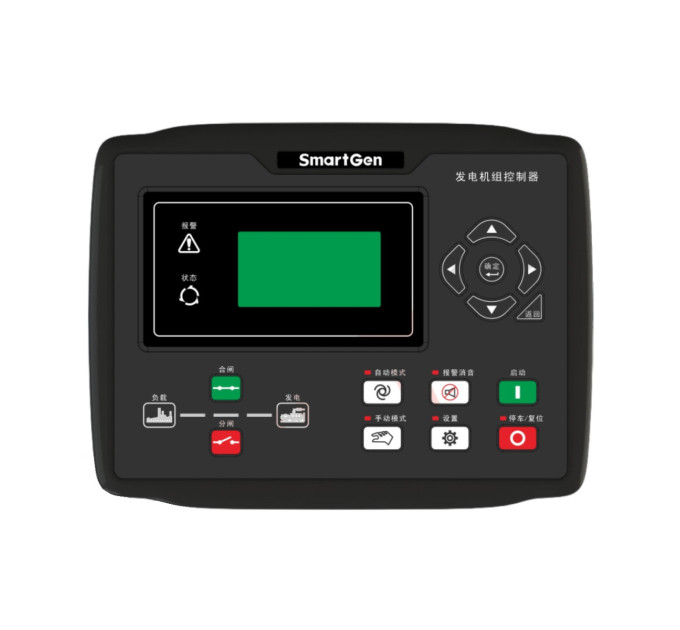

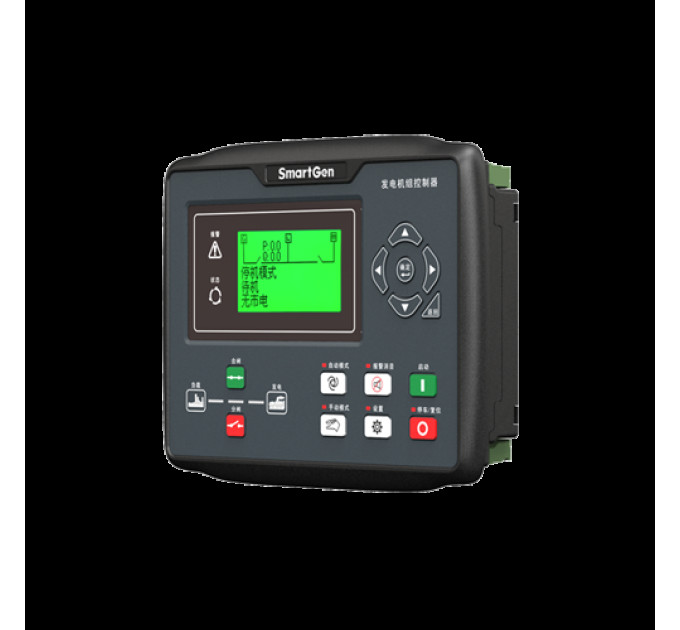

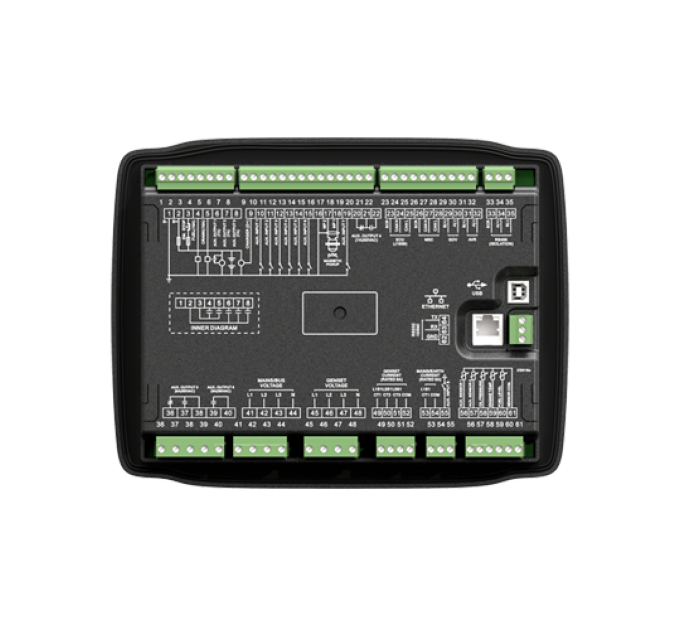

SmartGen HGM8110LT Genset controller

Technical Parameters:
Display LCD
Operation Panel Rubber
Language Chinese & English & Other
Digital Input 8
Relay Output 8
Analogue Input 5
AC System 1P2W/2P3W/3P3W/3P4W
Alternator Frequency 50/60Hz
kW/Amp Detecting & Display ●
Monitor Interface RS485
Programmable Interface USB/RS485
CANBUS(1939) ●
Scheduled Start Genset ●
Maintenance ●
ULP ●
SMS ●
DC Supply DC(8～35)V
Case Dimensions(mm) 242*186*53
Panel Cutout(mm) 214*160
Operating Temp. (-40~+70)℃

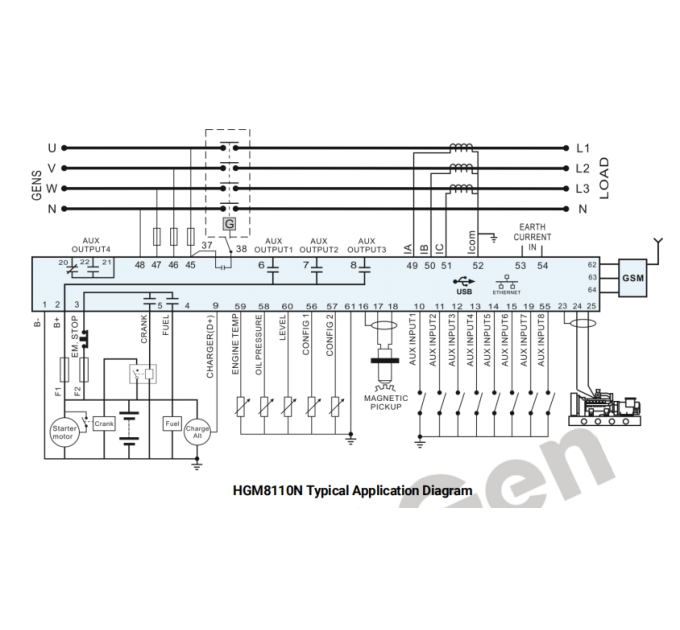

Product Overview:
HGM8100N series genset controllers are especially designed for extremely high/low temperature environment (-40~+70)°C. The controllers can operate reliably in extreme temperature conditions with the help of VFD display or LCD and the components that resist extreme temperature. Controller has strong ability of anti-electromagnetic interference, can be used under complex electromagnetic interference environment. It is easy to maintain and upgrade due to the plug-in terminal. All display information is Chinese (also can be set as English or other languages).

HGM8100N series genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measurement, alarm protection and “three remote” functions (remote control, remote measuring and remote communication).

HGM8100N series genset controllers adopt 32-bit micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. Majority parameters can be configured from front panel, and all parameters can be configured by PC via RS485 interface or ETHERNET to adjust and monitor. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.


NOTE:

1) Two fixed output ports: start output and fuel output.

2) Analog quantity sensor consists of three fixed sensors (temperature sensor, pressure sensor and fuel level sensor) and two flexible sensors.



Main characteristics are as below

With ARM-based 32-bit SCM, highly integrated hardware, high reliability.

Vacuum fluorescent display (VFD) or LCD display (able to control heating according to the environment temperature), selectable Chinese/English interface which can be chosen at the site, making commissioning convenience for factory personnel.

LCD adopts hard screen acrylic material with good wear-resisting and scratch-resisting.

Silicone panel and pushbuttons can be used in extreme temperature environment.

RS485 communication interface enables “Three remote functions” (remote control, remote measuring and remote communication) according to MODBUS protocol.

Ethernet monitoring can be realized via ETHERNET communication interface (need controller with Ethernet interface).

Equipped with SMS (Short Message Service) function. When genset is alarming, controller can send short messages via SMS automatically to max. 5 telephone numbers. Besides, generator status can be controlled and checked using SMS.

Equipped with CANBUS port and can communicate with J1939 genset. Not only can monitor frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown, raising speed and speed droop via CANBUS port (need controller with CANBUS interface).

Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz.

Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.

Mains Generator

Line voltage (Uab, Ubc, and Uca) Line voltage (Uab, Ubc, and Uca)

Phase voltage (Ua, Ub, and Uc) Phase voltage (Ua, Ub, and Uc)

Phase sequence Phase sequence

Frequency Hz Frequency Hz

Load

Current Ia, Ib, Ic A (unit)

Each phase and total active power P kW (unit)

Each phase and total reactive power Q Kvar (unit)

Each phase and total apparent power S kVA (unit)

Each phase and average power factor λ 1 (unit)

Accumulate total generator power W kWh, kVarh, kVAh (unit)

Earth current I A (unit)

For Mains, controller has over and under voltage, over and under frequency, loss of phase and phase sequence wrong detection functions; for generator, controller has over and under voltage, over and under frequency, loss of phase, phase sequence wrong, over and reverse power, over current functions.

3 fixed analog sensors (temperature, oil pressure and liquid level).

2 configurable sensors can be set as sensor of temperature, oil pressure or fuel level.

Precision measure and display parameters about Engine.

Temp. (WT) °C/°F both be displayed
