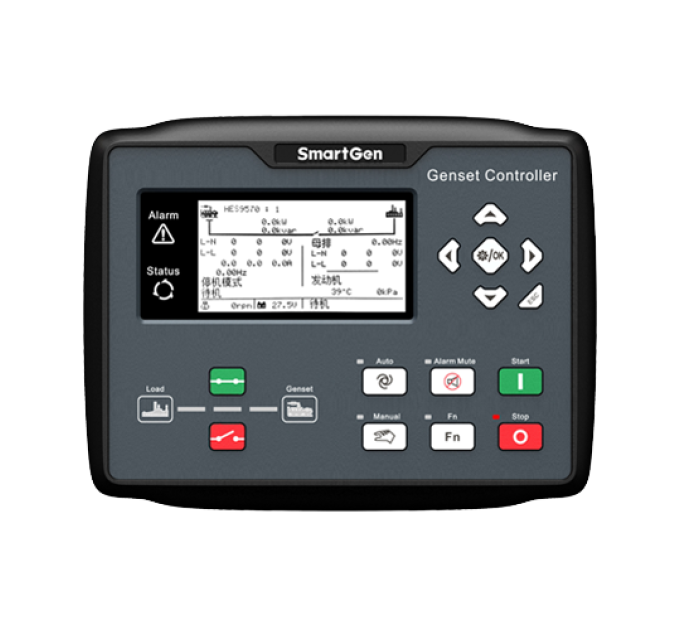

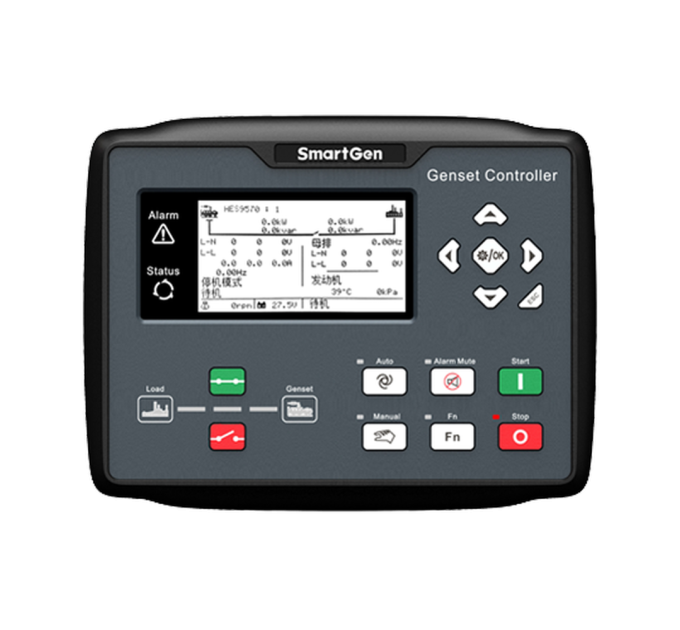

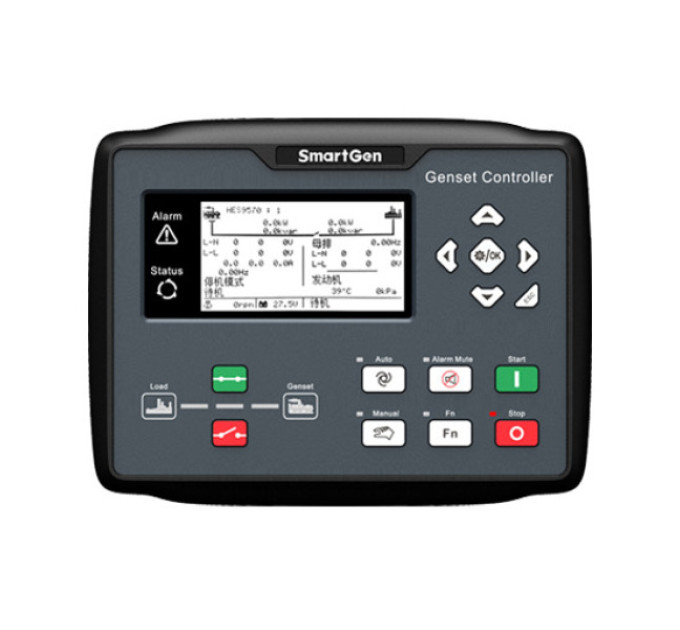

SmartGen HES9570 Hybrid energy parallel controller

Technical Parameters:
Display LCD(240*128)
Operation Panel Silicon Rubber
Language Chinese & English & Others
Digital Input 10
Relay Output 8
Analogue Input 5
AC System 1P2W/2P3W/3P3W/3P4W
Alternator Frequency 50/60Hz
kW/Amp Detecting & Display ●
Monitor Interface Ethernet/RS485
Programmable Interface USB/RS485
CANBUS(1939) ●
RTC & Event Log ●
Scheduled Start Genset ●
Maintenance ●
DC Supply DC(8-35)V
Case Dimensions(mm) 242*186*49
Panel Cutout(mm) 214*160
Operating Temp. (-25~+70)℃
Weight(kg) 1.1

Product Overview:

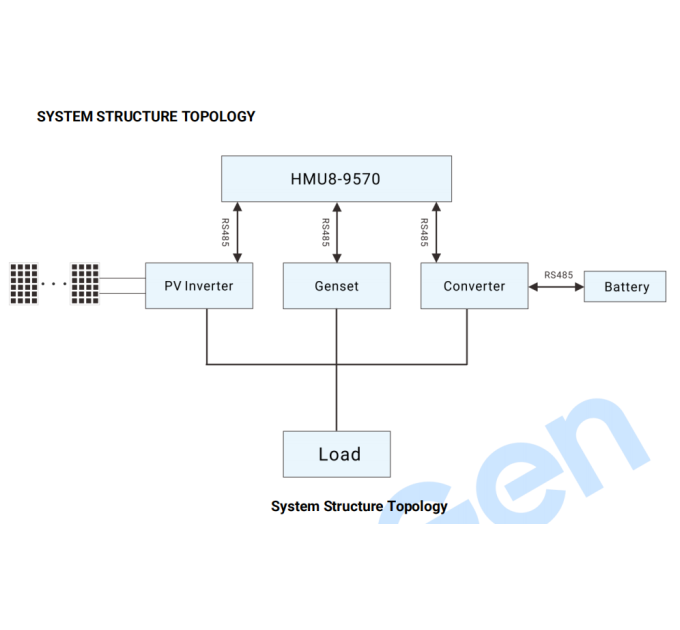

HES9570 hybrid energy genset parallel controller is designed for micro-grid system composing of solar energy, energy storage battery and genset, which suits for the grid-connection of single genset and new energy system, to realize genset auto start/stop, parallel running, data measurement, alarm protection and “three remote” (remote control, remote measurement, remote communication). It fits with large LCD display, optional Chinese, English and other languages interface, and it is easy to operate and reliable to run.

HES9570 hybrid energy genset parallel controller has GOV and AVR control function, which can synchronize and share load automatically to parallel with PCS (VSG mode). Controller can precisely monitor all running status of gensets, and when abnormal occasions occur, gensets can parallel off from the bus and stop, meanwhile, fault status will be displayed on the LCD. Controller has SAE J1939 port, and can communicate with various ECU (Engine Control Unit) with J1939.

HES9570 hybrid energy genset parallel controller controls genset to work in droop mode and charges for storage battery pack by controlling output power. It can be widely used in micro-grid systems composing of various genset and new energy with compact structure, simple connections and high reliability.

PERFORMANCE AND CHARACTERISTICS

Main characteristics are as bellow:
— With ARM-based 32-bit SCM, high integration of hardware and more reliable;
— 240x128 LCD with backlight, multilingual interface (including English, Chinese or other languages)which can be chosen on site, making commissioning convenient for factory personnel;
— Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
— Silicon panel and pushbuttons for better operation in high/low temperature environment;
— Two RS485 communication ports enable remote control, remote measuring, remotecommunication via MODBUS protocol;
— A variety of built-in protocols enable communication with inverters such as HUAWEI;
— Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems withvoltage 120/240V and frequency 50/60Hz;
— Collects and displays 3-phase voltage, frequency, 3-phase current, power and voltage harmonic parameters;
— For Busbar, controller has loss of phase and reverse phase sequence detection functions; For newenergy, controller has over voltage, under voltage, over frequency, under frequency, high unbalancedvoltage, high total harmonic distortion, over current, earth fault, high unbalanced current, low powerfactor, over power, reverse power, loss of excitation, loss of phase, reverse phase sequence detectionfunctions;
— 5 analog sensor inputs can be set to temperature, pressure, level, power inverters or irradiancesensors;
— Partial sensor inputs can connect with resistor type, voltage type or current type sensors;
— Voltage, current and power display of up to 4-way solar panel channels can be set;
— The maximum capacity of PV calculated by collecting up to 3-way solar panel temperature and3-way solar irradiance;
— Various of temperature, pressure and oil level sensor curves can be used directly or customized;
— Busbar normal automatic closing and starting with load, automatic soft loading and soft unloading;
— Two active power control modes (fixed power, inverter control);
— Three reactive power control modes (fixed power, power factor, inverter control);
— Each energy can be set or calculated as rated active power, rated reactive power and ratedapparent power. The rated active power of PV power station can be calculated in real time accordingto the sensor data and weather data, the rated power of gensets can be calculated in real timeaccording to the information of online units, the rated power of energy storage power station andmains supply can be set for direct use;
— The controller is able to control the priority of energy use (mains supply, gensets, PV power station(including wind power station), energy storage power station). Each energy can be prioritizedseparately, and the smaller the priority value, the higher the priority. Default: PV power station >energystorage station >mains supply>gensets. It supports dynamic prioritization；
— The input port can be set to make them unavailable for mains supply, PV power station, gensetsand energy storage power station. When the energy is unavailable, the energy will no longer provideenergy and spinning reserve.
— Parameter setting function: par
