Technical Parameters:
Working Voltage DC8.0V~ DC35.0V continuous power supply
Power Consumption <6W
Aux. relay output port 1-16 10A relay for output port 1~4, 7~14. 16A relay for output port 5~6, 15~16.
Case Dimension 161.6mm x 89.7mm x 60.7mm
Installation Way 35mm guide-rail installation or screw installation
Working Conditions Temperature: (-25~+70)℃ Humidity: (20~93)%RH
Storage Conditions Temperature: (-30~+80)℃
Weight 0.4kg
Product Overview:

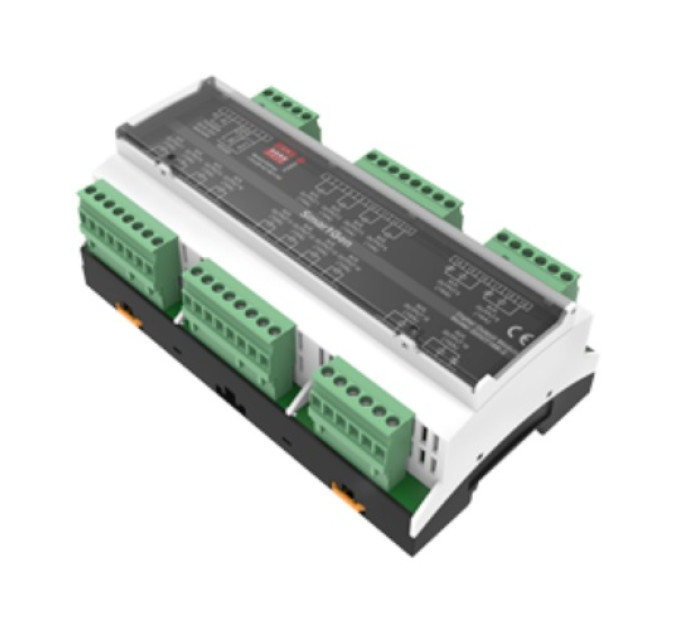

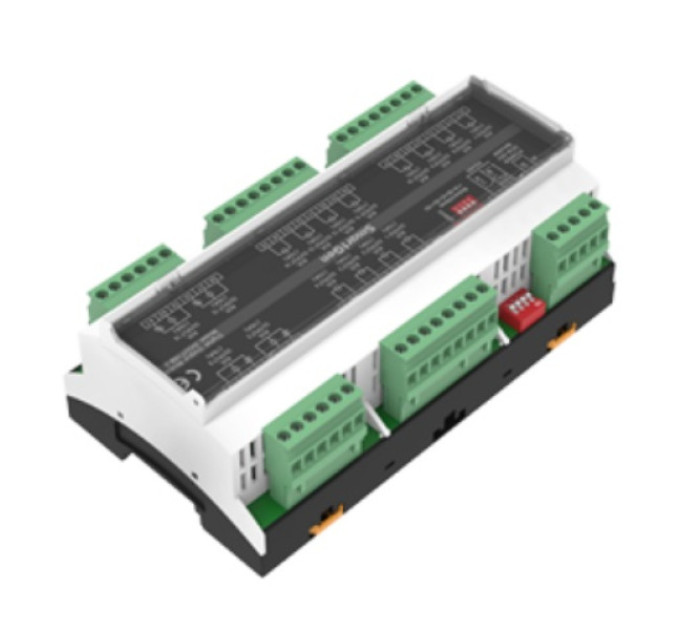

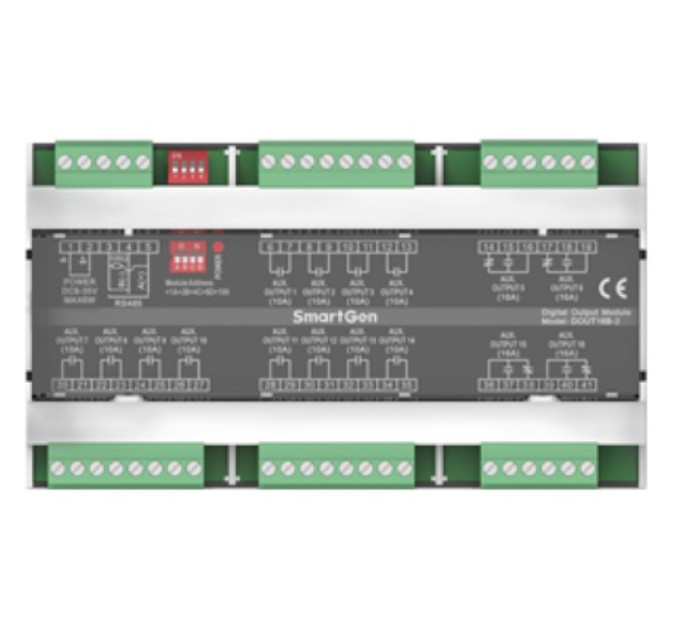

DOUT16B-2 Digital Output Module is an expansion module which has 16 auxiliary digital output channels. Expansion module status is transmitted to DOUT16B-2 by main control board via RS485.
