Technical Parameters:
Working PowerRange : DC(10~36)V
Overall Dimension : 224*156*41
Installation Dimension : 213*100
Working Temperature : (-25~+70)˚C
weight : 1.02kg
Product Overview:

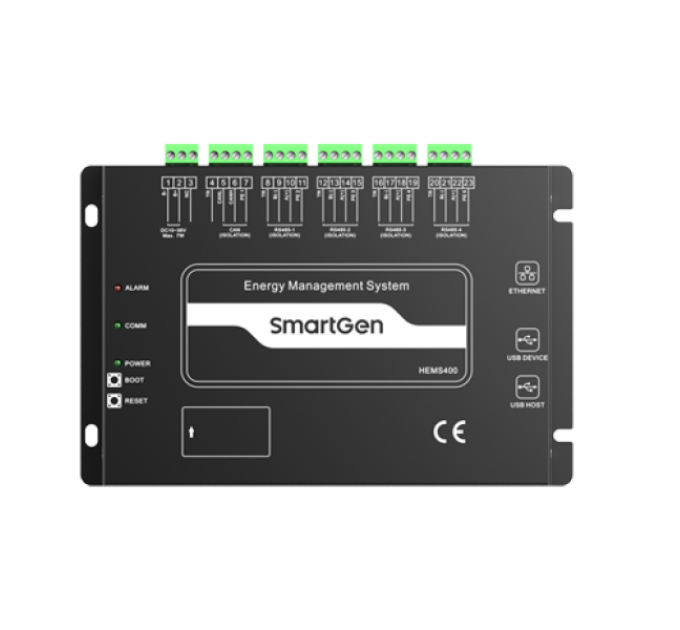

HEMS400 Hybrid Energy Management System is used for hybrid energy system consists of solar energy, wind energy, energy storage battery, hydrogen fuel cell, mains supply and diesel genset. It can read and display the data and status of various energies, control the power distribution, customize the control policy and support multiple control modes. The communication protocol is customized by PC, supporting the Modbus or CAN protocol to collect data, and supporting the Modbus slave service to output data. The operation policy or control logic can be written by using the built-in PLC. It is suitable for hybrid energy systems with flexible configuration and easy operation.
PERFORMANCE AND CHARACTERISTICS
Its main characteristics are as follows:
─ With 4-way RS485 communication port, 1-way CAN port, 1-way Ethernet port;
─ The logic programming is available by the built-in PLC, operation mode and scheduling method can be changed;
─ Customized communication protocols for PV inverter, energy storage converter and BMS;
─ Customized communication protocols when connecting to power expansion module, genset controller and low voltage distribution controller;
─ The previous data monitoring can be realized via Ethernet port;
─ With USB device port and host port;
─ The controller is fixed with metal clips;
─ Modular design, pluggable wiring terminals, built-in mounting, compact structure with easy installation.
