Technical Parameters:
Working PowerRange : DC12/24V
Overall Dimension : 430*306*220
Installation Dimension : 340*100
Working Temperature : (-25~+55)°C
weight : 12kg
Product Overview:

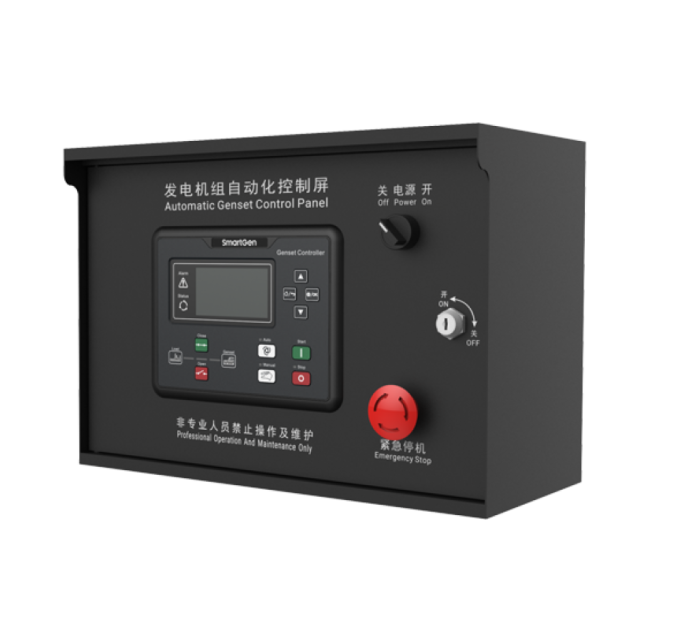

GCPBE62/B_E62CAN/B Backpack Control Panel (referred to as Control Panel) consists of control box, HGME62/HGME62CAN controller, BAC06A-24V battery charger, ESC (provided by genset manufacturer), shock absorber and so on.
GCPBE62/B_E62CAN/B Backpack Control Panel is used for single genset automation system of one power supply and one generator set. It can realize auto start/stop of genset via remote start signal, and the functions of speed control, data measurement, and alarm protection. With compact structure and easy wiring, it will simplify the wiring connection with the control panel, and improve the productivity of genset control panel.
PERFORMAMCE AND CHARACTERISTICS
HGME62/HGME62CAN Genset Controller adopts LCD display, optional language interface including Chinese, English and Russian. The micro-processing technique can achieve precision measurement, value adjustment, timing and threshold setting etc. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.
BAC06A series battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for BAC06A-12V charger is 6A; the maximum charge current for BAC06A-24V charger is 3A.
