Technical Parameters:
Model BPL48-280
Cell Type LFP
Cell Specification 3.2V/280Ah
Group Method 1P48S
Rated Energy 43.0kWh
Rated Voltage DC153.6V
Working Voltage Range DC134.4V~172.8V
Maximum Continuous Charge Rate 0.5C
Maximum Continuous Discharge Rate 0.5C
Cooling Method Liquid-cooling
Built-in PACK-level Fire Control Perfluorohexanone (aerosol for special order)
Protection Level IP67
Dimensions 808mmx1172mmx245mm
Weight 390kg
Product Overview:

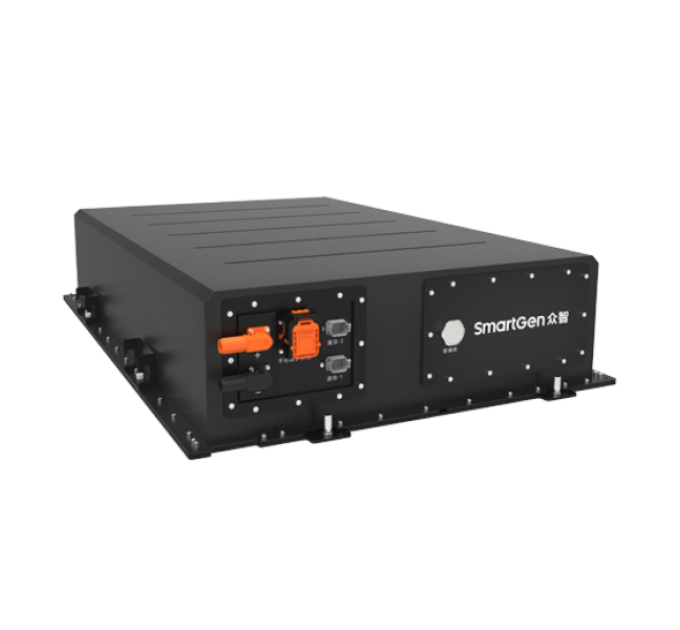

BPL48-280 Liquid-cooled Battery Box is lithium iron phosphate battery with energy storage medium that is highly safe and has a long cycle life, which is modular, easy to install and maintain. With high-efficiency liquid-cooling heat dissipation technology, it can effectively control the temperature of the battery module, significantly enhancing the safety, reliability and cycle life of the battery system. The built-in fire control module guarantees the system safe operation.
PERFORMANCE AND CHARACTERISTICS
— High-efficiency heat dissipation: The integrated liquid-cooling cycle system using coolant to quickly remove the heat generated by the battery, ensuring that the battery operates within the optimal temperature range and extending tis service life;
— Intelligent monitoring: Built-in temperature sensor and monitoring system enable it to monitor internal battery box temperature in real time and intelligently adjust cooling efficiency, prevent overheat;
— Compact structure: Optimized battery box structure maximizes the usage space and ensures good heat dissipation effect and mechanical strength;
— Safety and protection: Equipped with electrical protection mechanism and built-in fire control module, it can run safely under various working conditions;
— Easy maintenance: Modular design makes it convenient for daily inspection and maintenance and reduce the operation cost;
— High protection class: Protection class can reach IP67.
