Technical Parameters:
Model BPL52-314
CellType LFP
CellSpecification 3.2V/314Ah
GroupMethod 1P52S
RatedEnergy 52.2kWh
RatedVoltage DC166.4V
WorkingVoltageRange DC145.6V~187.2V
MaximumContinuousChargeRate 0.5C
MaximumContinuousDischargeRate 0.5C
CoolingMethod Liquid-cooling
Built-inPACK-levelFireControl Perfluorohexanone(aerosolforspecialorder)
ProtectionLevel IP67
Dimensions 808mmx1172mmx245mm
Weight 410kg
Product Overview:

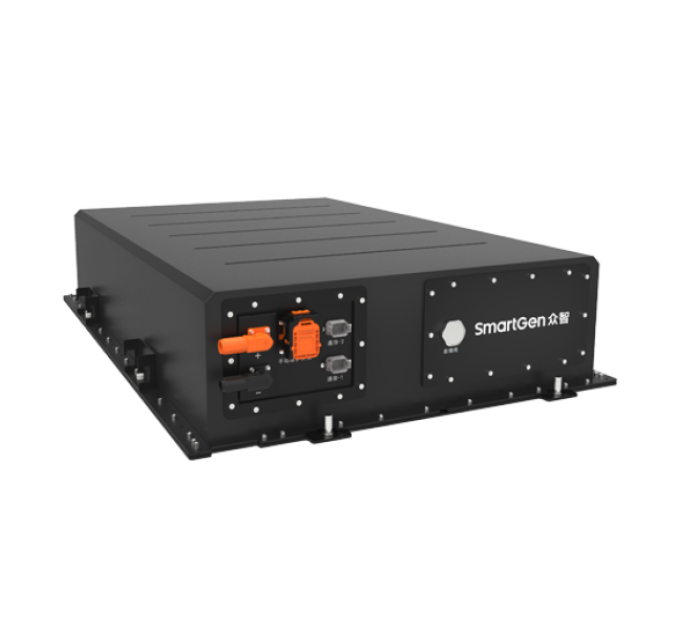

BPL52-314 Liquid-cooled Battery Box is lithium iron phosphate battery with energy storage medium that is highly safe and has a long cycle life, which is modular, easy to install and maintain. With high-efficiency liquid-cooling heat dissipation technology, it can effectively control the temperature of the battery module, significantly enhancing the safety, reliability and cycle life of the battery system. The built-in fire control module guarantees the system safe operation.
PERFORMANCEANDCHARACTERISTICS
— High-efficiency heat dissipation: The integrated liquid-cooling cycle system using coolant to quickly remove the heat generated by the battery, ensuring that the battery operates within the optimal temperature range and extending tis service life;
— Intelligent monitoring: Built-in temperature sensor and monitoring system enable it to monitor internal battery box temperature in real time and intelligently adjust cooling efficiency, prevent overheat;
— Compactstructure: Optimized battery box structure maximizes the usage space and ensures good heat dissipation effect and mechanical strength;
— Safety and protection: Equipped with electrical protection mechanism and built-in fire control module, it can run safely under various working conditions;
— Easymaintenance: Modular design makes it convenient for daily inspection and maintenance and reduce the operation cost;
— Highprotection class: Protection class can reach IP67.
