Technical Parameters:
Nominal AC Input Voltage : AC (300~500)V (Three Phase /Two Phase)
Rated AC Input Voltage : AC 380V (Three Phase /Two Phase)
AC Input Frequency : 50Hz/60Hz
Overall Dimension : 150*139*158
Working Temperature : (-30~+55)°C
weight : 3kg
Product Overview:

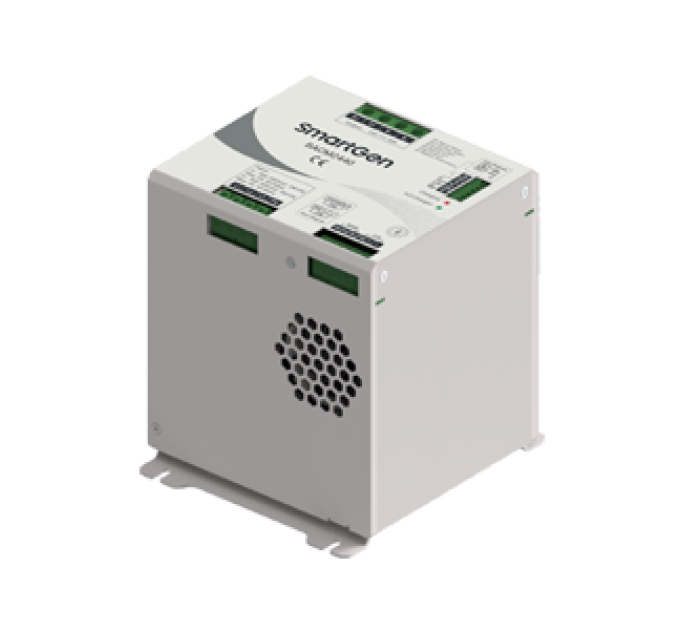

BACM2440 battery charger is intelligent and multi-functional battery charger designed for the charging characteristics of various battery types, including lead-acid, lithium-ion, and nickel-cadmium, for engine starting applications. This charger is compatible with 24V or 12V battery systems, delivering a maximum output current of 40A. Additionally, it can function as a DC power supply, providing stable power to DC24V or DC12V equipment.
PERFORMANCE AND FEATURES
1) Switching mode power supply structure allows for wide AC input voltage range, small size, light weight, and high efficiency;
2) Users can select two-stage or three-stage automatic charging mode as needed. Both are designed according to battery charging characteristics to prevent overcharging of lead-acid batteries and ensure optimum battery service life;
3) Built-in power factor correction (PFC) circuit can calibrate the power factor up to over 0.9;
4) Battery voltage detection ports can precisely detect the battery voltage;
5) Temperature sensor input port allows for monitoring the battery temperature in real time, and temperature compensation function can prevent high battery temperature effectively; interrupted;
6) Auxiliary output port that supports combined output of alarms for battery under voltage, over voltage, and charging failure, with this port outputting low level signal;
7) Mains failure output port will output low level signal immediately when the AC power input is
8) The charger is suitable for 24V battery under default setting, and it can charge 12V battery after modifying configuration. The maximum rated charge current is 40A;
9) LED indicators on the panel to show the charging status: fully charged (green) and charging (red);
10) RS485 and CAN communication ports;
11) Bluetooth communication function allows the charger to connect to the app on the smartphone, which can set the charge parameters, such as voltage or current, and monitor the charge status;
12) It features a corrosion-resistant metal enclosure, vertical screw mounting, and a compact size for easy installation.
