Technical Parameters:
Working PowerRange : AC(100~277)V
Overall Dimension : 205.5*131*55
Installation Dimension : 190*120
Working Temperature : (-30~+55)°C
weight : 1.24KG
Product Overview:

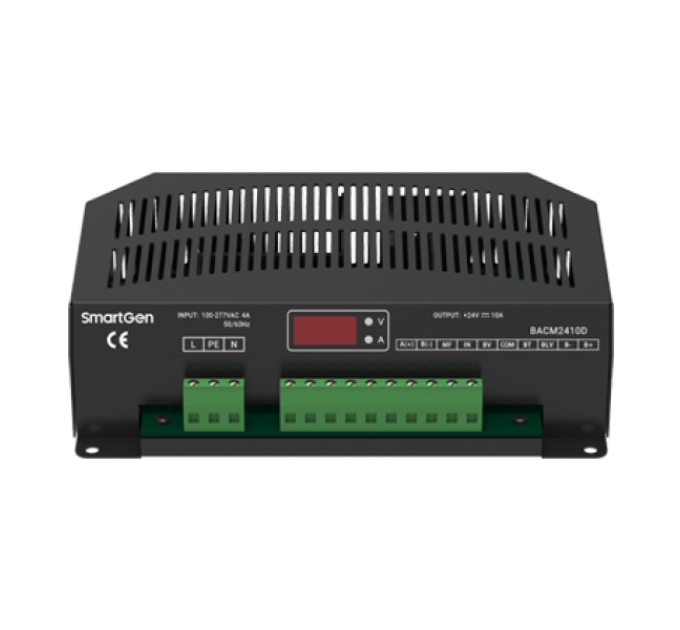

BACM2410D battery charger is intelligent and multi-functional which is specially designed for meeting the charging characteristics of the lead-acid, lithium and Ni-Cd engine starter batteries. It is suitable for 24V battery and the maximum charge current is 10A.
PERFORMANCE AND CHARACTERISTICS
a) Wide input AC voltage range, small size, light weight, high efficiency;
b) Users can select automatic two-stage charging process or automatic three-stage charging process as needed. Both the two charging process are carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
c) Built-in PFC circuit can calibrate the power factor up to 0.99;
d) Built-in current protection circuit for over current protection, short-circuit protection and reverse connection protection. The output will recover automatically after the failure is removed;
e) Battery voltage detection ports can detect the battery voltage in real time;
f) Battery low voltage output port; it will output low level immediately after the battery voltage has fallen below the set value for preset delay;
g) Temperature sensor port allows for monitoring the battery temperature in real time and effectively;
i) Standard RS485 communication port; temperature compensation function which can prevent the battery temperature is too high
h) Mains failure port; It will output low level immediately when the AC input is interrupted;
j) BACM2410D charger is suitable for 24V battery, rated current is 10A;
k) LED display: Full charged indication (Green light) and charging indication (Red light);
l) Digital tube displays the current charging voltage and charging current in a loop;
m) Multiple charging curves are selectable, users do not need to manually adjust the parameters, charging is automatically performed according to battery characteristics.
