Technical Parameters:
Nominal AC Voltage : AC (100~277)V
Max. AC Voltage : AC (90~305)V
AC Frequency : 50Hz/60Hz
Overall Dimension : 144.2*96.7*53.5
Installation Dimension : 131*80
Working Temperature : (-40～+55)°C
weight : 0.56kg
Product Overview:

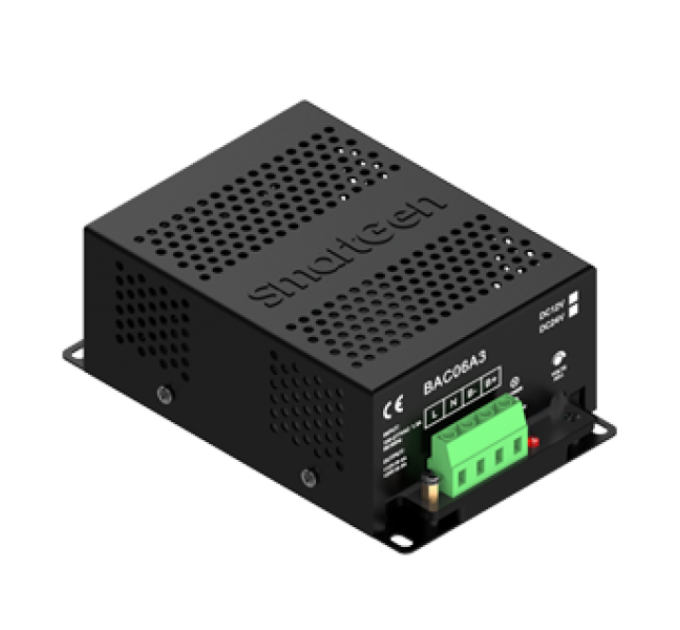

BAC06A3 switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.
PERFORMANCE AND CHARACTERISTICS
Characteristics are as below:
— Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
— Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extend the battery life to the fullest;
— With short circuit and reverse connection protection;
— Charging voltage can be adjusted via potentiometer on site;
— LED display: Power indication and charging indication;
— The internal potting process significantly enhances resistance to vibration, harsh environments (moisture, salt, mold), and improves heat dissipation performance;
— The horizontal mounting type is easy for installation.
