Technical Parameters:
Battery Voltage 24V
Max. Charging Current 2A
Rated Input Voltage AC(100～277) V
Max. Input Voltage Range AC(90～305)V
AC Input Frequency 45Hz～65Hz
Max. Input Current 1.2A
No-Load Power Consumption <2W
Operating Mode Two segments
Maximum Efficiency 90%
Operating Temp. (-30～+55)°C
Storage Temp. (-40～+85)°C
Net Weight(kg) 0.15
Case Dimensions(mm) 80*35.5*65
Product Overview:

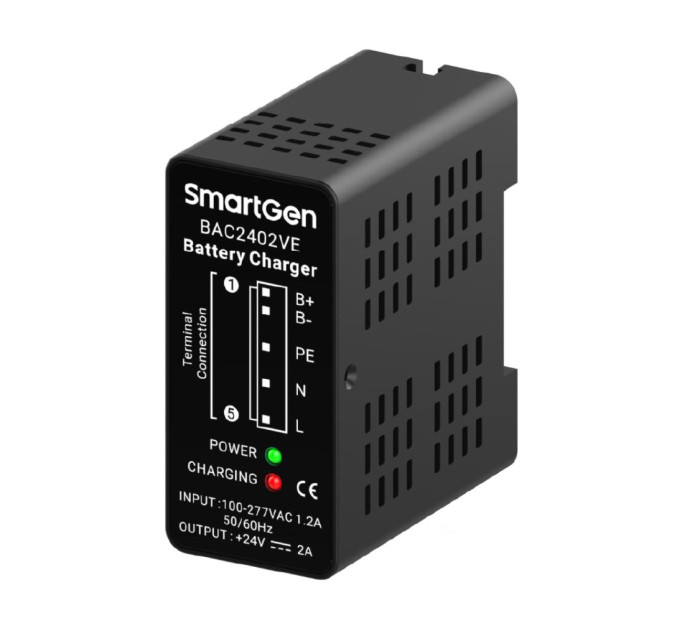

Fit with up-to-date power supply device, charger BAC2402VE is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 24V lead-acid batteries with the maximum output current 2A.
PERFORMANCE AND CHARACTERISTICS
Switch power supply structure, wide input voltage range, small size, light weight, and high efficiency rate;
Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in current protective circuit for short-circuit protection;
Suitable for 24V storage battery with the maximum charging current 2A;
LED display: Power indication and charging indication.
