The SmartGen Battery Management System (BMS) Solution is designed for comprehensive monitoring, control, and protection of battery systems used in Energy Storage Systems (ESS). It provides continuous monitoring of individual battery cells, battery modules, and the complete battery system.

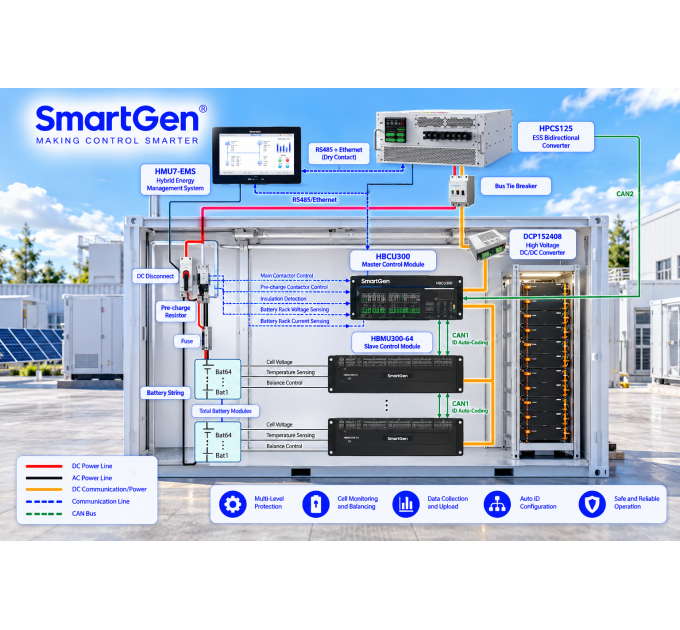

The BMS architecture is based on the HBCU300 Master Control Module and HBMU300-64 Slave Control Modules. The HBMU300-64 modules monitor individual cell voltage, temperature, and cell balancing, transmitting the collected data to the master controller via CAN communication.
The HBCU300 provides centralized battery system management. It collects and processes data from the slave modules and monitors battery rack voltage and current, insulation status, main contactor operation, and the pre-charge circuit.
The system can be integrated with the HPCS125 ESS Bidirectional Converter and HMU7-EMS Hybrid Energy Management System. Communication via CAN, RS485, and Ethernet enables integration of the BMS with other ESS components and provides centralized system monitoring.
The BMS provides multi-level battery protection against overvoltage and undervoltage, high and low temperature, charging and discharging overcurrent, and insulation faults.
The system also supports data collection and transmission, automatic module identification, and cell balancing, helping ensure safe, stable, and reliable battery operation.
This solution is suitable for industrial and commercial energy storage systems, hybrid power systems, solar installations with energy storage, backup power systems, and other applications using large-scale battery systems.
| Свойства |
| Full name (EN) |
|
Battery Management System (BMS) Solution |
