Technical Parameters:
Operation Voltage DC(8-35)V
Case Dimensions(mm) 71.6*92.7*60.7(mm)
Operating Temp. (-40~+70)℃
Weight 0.14kg
Product Overview:

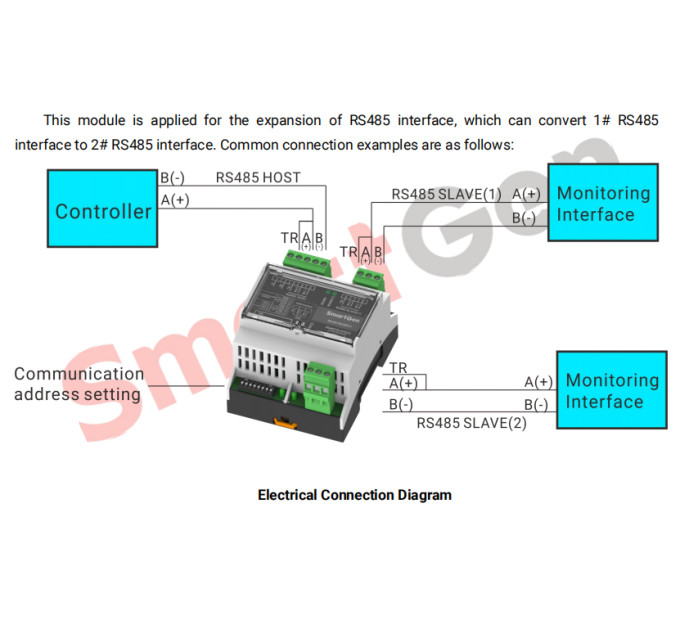

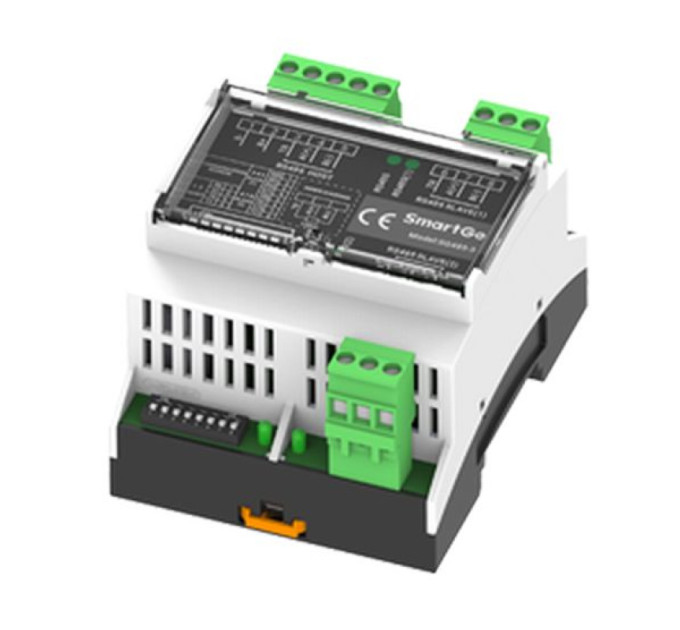

SG485-3 is the expansion module of RS485 interface, which has 3 interfaces, namely RS485 host interface, RS485 slave 1 interface, RS485 slave 2 interface. It can convert 1# RS485 interface to 2# RS485 interface, providing convenience for customers to monitor and collect data via Modbus-RTU protocol.
PERFORMANCE AND CHARACTERISTICS
With 32-bit ARM SCM, high hardware integration, improved reliability;
DC(8~35)V continuous power supply;
35mm guide rail installation method;
Modular design and pluggable connection terminals; compact structure with easy mounting.
