Technical Parameters:
RS485 network can connect to maximum 32 nodes;
Isolation Voltage: reach up to DC1000V;
Power supplied by LINK interface and there is no need to connect to external power supply.
Baud rate ≤ 9600bps；
Humidity： 20%~90%(No Condensation)；
Working Temperature： -40℃~+70℃；
Case Dimension： 91*42*61mm(L*W*H)；
Weight： 0.06kg.
Product Overview:

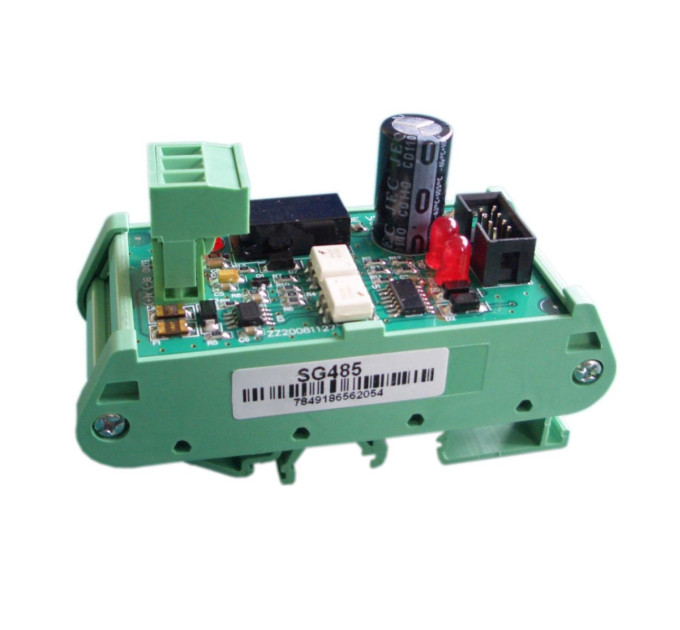

SG485 Communication Interface Conversion Module can convert the communication interface from LINK (Smartgen special) to isolated standard RS485. The module integrated DC/DC power isolation and RS485 interface chip which enable it to connect to RS-485 network.
