Technical Parameters:
Battery Voltage 12V/24V
Max. Charging Current 6A/3A
Rated Input Voltage AC (100～277)V
Max. Input Voltage Range AC (95～305)V
AC Input Frequency (50/60)Hz
Max. Input Current 2A
No-Load Power Consumption <3W
Operating Mode Two&Three segments
Operating Temp. (-30～+55)°C
Storage Temp. (-40～+85)°C
Net Weight(kg) 0.47KG
Case Dimensions(mm) 136*86*49(mm)
Product Overview:

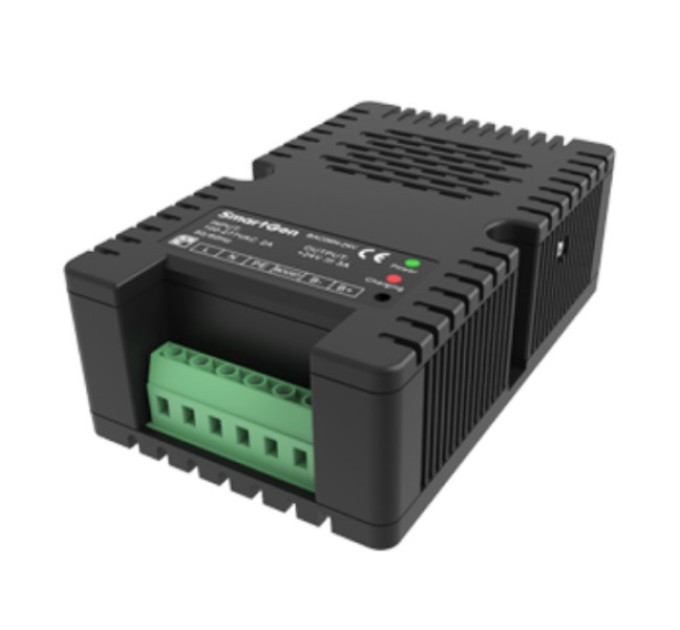

BAC06N/BAC06NB series battery chargers adopt switching power supply device, and is specially designed for lead-acid battery used in engine start according to its property. The charger is suitable for long-term complement charging (floating) of lead-acid battery. The maximum output current for 12V charger is 6A; the maximum output current for 24V charger is 3A.
PERFORMANCE AND CHARACTERISTICS
Applying switching power supply structure, wide range of AC voltage input, small volume, light weight and high efficiency;

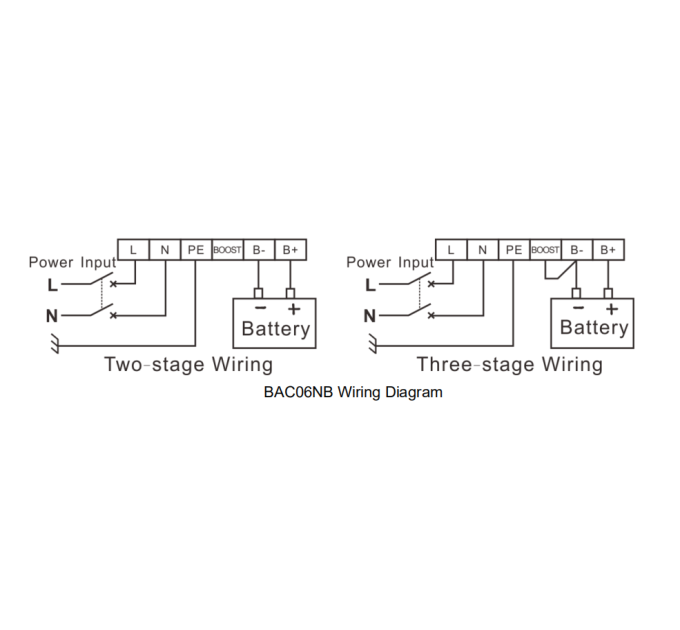

BAC06N adopts two-stage charging method for automatic charging, BAC06NB can be automatically charged by selecting two-stage or three-stage charging method based on needs, both of them are designed according to charging properties of the lead-acid battery, which can avoid overcharging and this extends the battery life to the fullest;
BAC06N has short circuit protection, reverse connection protection; while BAC06NB has short circuit protection, reverse connection protection, absorption timing, and BOOST functions;

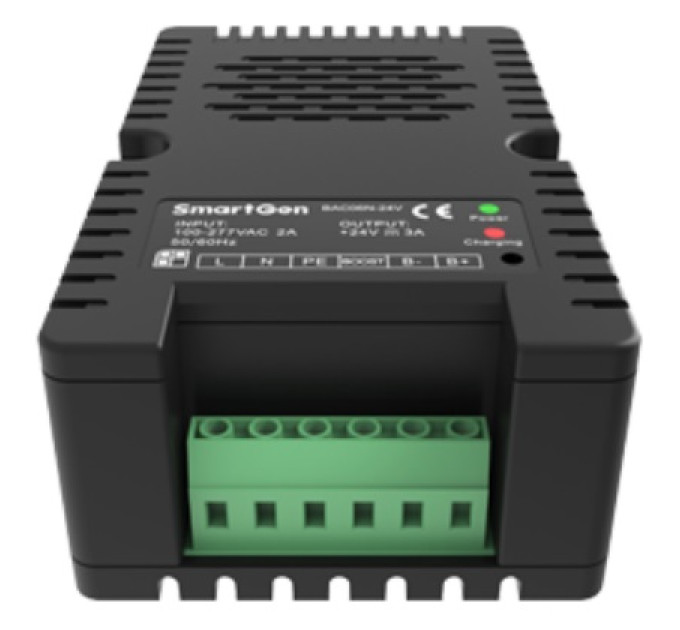

LED status display: power indicator, and charging indicator;

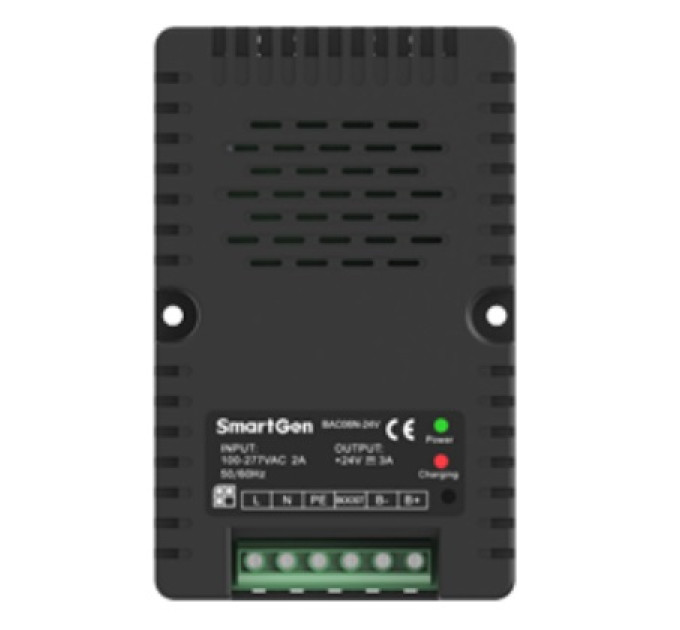

Applying horizontal installation, which is easy and simple to install.
