Technical Parameters:
Measuring range (0~0.4)MPa
Overload capacity 250% Full Scale Pressure
Pressure type Gauge pressure
Measuring dielectric Gas and liquid which is compatible with 316L stainless steel
Comprehensive accuracy Class 0.5
Working temperature -40°C~+125°C
Compensation temperature -10°C ~+70°C
Power supply range DC 12V~36V (DC 24V)
Signal output 4mA ~20mA
Load resistance RL ≤ (Vpower - 7.5V)/20mA
Enclosure protection IP65
Safety and explosion prevention EXIAⅡCT5
Thread and enclosure Stainless steel 304
O-shape gasket Fluororubber
Transmitter diaphragm Stainless steel 316L
Weight 0.22kg
Product Overview:

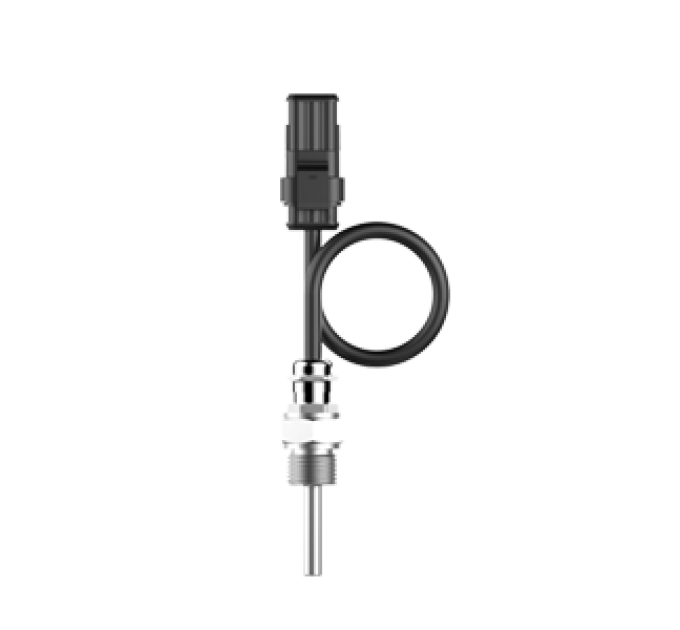

SGWS115A resistance type temperature sensor adopts the high-precision Pt100 film platinum resistor and has stainless 304 steel enclosure. It is used for measuring the temperature of liquid and gas fluids. Its features are highly precise measurement, high resolution, improved security and easy operation. The sensor can measure the temperature of various liquids and vapours which produced during production process.
