Technical Parameters:
Number of Poles (P) : 4P
Rated current : 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A
Rated Operating Voltage : AC230V(2P)/AC400V
Rated Insulation Voltage : 800V
Rated Impulse Withstand Voltage : 8 kV
Utilization Category : AC-33iB
IP Rating : IP20
Rated Impulse Withstand Current : 5kA/30ms
Rated Making Capacity : 8 kA
Rated Control Supply Voltage : AC230V
Contact Transition Time : Less than 30ms
Transfer Time : Less than 100ms
Power-off Time : Less than 30ms
Working Mode : Auto Trans. Auto Restore
Electrical Class : PC Class
Normal Operating Range : 85%Ue~110%Ue
Operation Mode : Auto/Manual
Switch Position : Normal (I), Alternate (II)
Mechanical Life : 8000 Operations
Electrical Life : 2000 Operations
Product Overview:

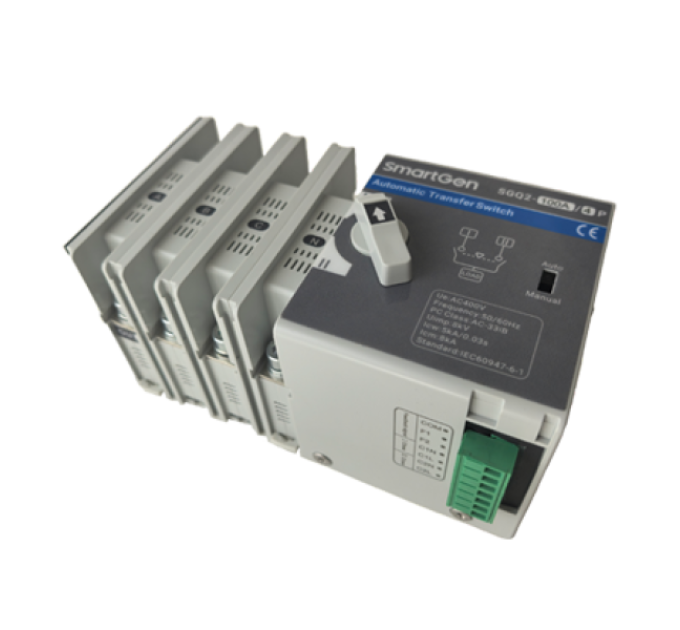

SGQ2 series automatic transfer switch (ATS) is designed for dual-power supply systems with AC400V 50/60Hz below, and rated operating current up to 100A, featuring an excitation drive structure. This switch offers two positions: Normal (I) and Alternate (II), automatically transferring one or multiple load circuits from one power supply to another to ensure continuous power supply. It is suitable for essential applications including industrial, commercial, high-rise buildings and residential projects. The product complies with the IEC 60947-6-1 standard: "Low-voltage switchgear and controlgear - Part 6-1: Multiple function equipment - Transfer switching equipment."
STRUCTURE AND CHARACTERISTICS
The SGQ2 series automatic transfer switch is a new generation of PC class two-position switch product combines advanced digital electronic control technology. Designed with features such as compact size, aesthetical appearance, energy efficiency, easy installation and reliable dual interlock protection, it offers advanced and comprehensive functionality.
