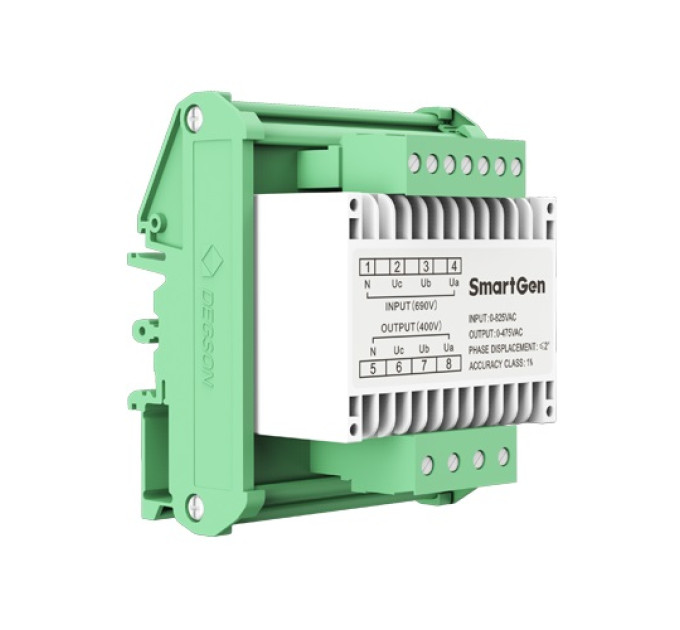

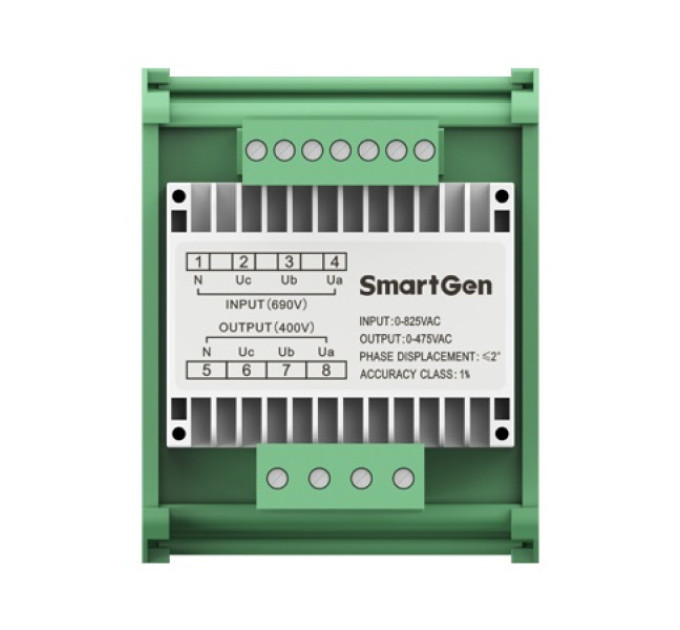

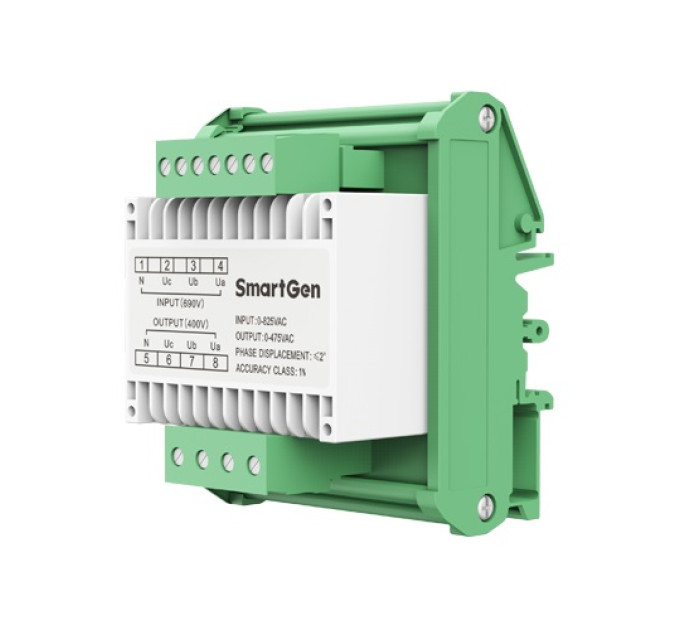

SmartGen PTM6940 Potential transformer module

5 749 грн.
  • SmartGen PTM6940 Potential transformer module
  • SmartGen PTM6940 Potential transformer module
  • SmartGen PTM6940 Potential transformer module
  • SmartGen PTM6940 Potential transformer module
  • SmartGen PTM6940 Potential transformer module
  • Available to order
  • Product Code:  6120011
5 749 грн. incl. VAT
Did you find a better price?
Technical Parameters:
Case Dimensions(mm) 72.0*89.6*63.2
Operating Temp. (-25~+70)℃
Weight 0.39KG

Product Overview:
PTM6940 Potential Transformer Module is a kind of PT module which transforms input voltage 690VAC (Rated) to output 400VAC (Rated). It can be applied in higher voltage collection scenario together with a controller.

PERFORMANCE AND CHARACTERISTICS

Input voltage range: 0~825VAC;

Output voltage range: 0~475VAC;

Phase shift: ≤2°;

Accuracy: ≤1%;

Realize signal insulation;

Suitable for 3Ph 3W, and 3Ph 4W.
