Technical Parameters:
Working Voltage：DC18.0V~ DC35.0V continuous power supply
Power Consumption：<2W
Case Dimension：144mm x 96mm x 15mm
Working Conditions：Temp.：(-25~+70)°C Humidity：(20~93)%RH
Storage Conditions：Temp.：(-25~+70)°C
Weight：0.50kg
Product Overview:

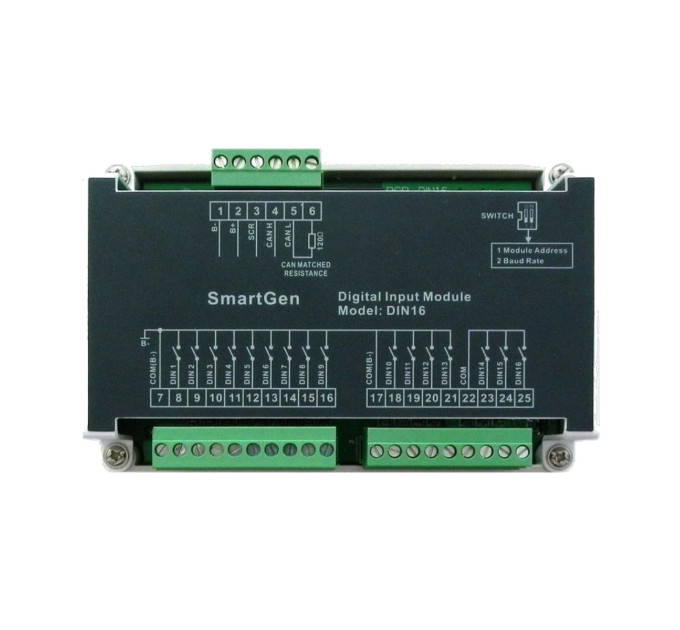

DIN16 digital input module is an expansion module which has 16 auxiliary digital input channels and the name of each channel can be defined by users. The data collected by DIN16 are transmitted to the HMC9000 controller for processing via CANBUS port.
