Technical Parameters:
Operating Voltage DC8.0V to DC35.0V, Continuous Power Supply.
Power Consumption <7W (standby ≤0.5W)
Power Supply With Load DC 18V~ DC35V DC 0A~ DC10A， Instantly reachable 20A
Relay Output 7A AC250V Volt free
Case Dimension 91mm x 89.6mm x 54mm
Working Conditions Temperature: (-25~+70)°C; Humidity: (20~95)%
Net Weight 0.35kg
Product Overview:

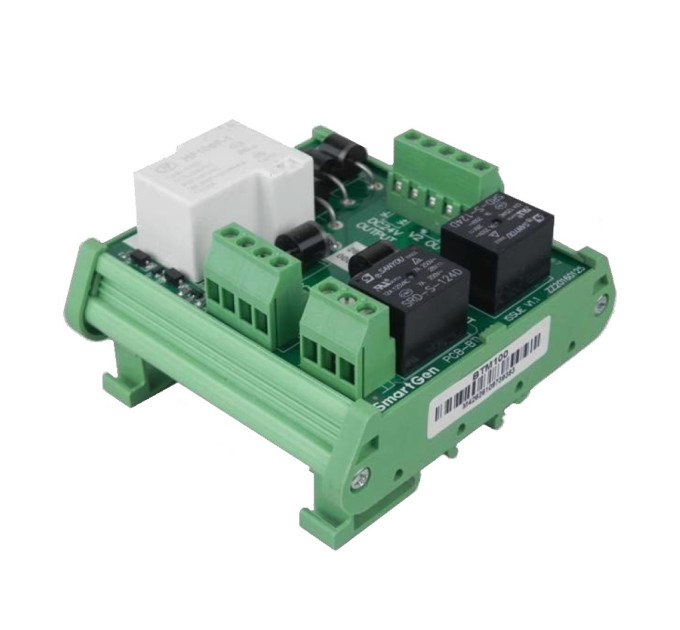

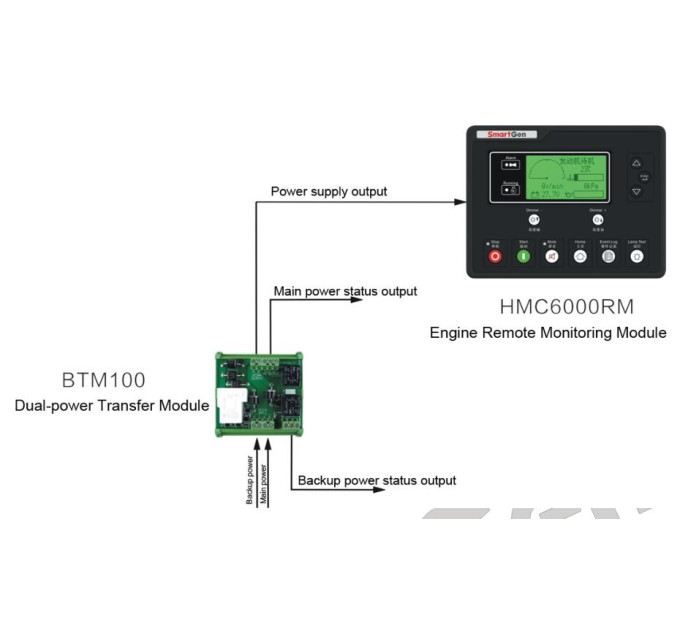

BTM100 Dual-power Transfer Module is especially designed for genset uninterruptible power supply with double power sources input and one power output. It is automatically choose output power source based on the voltage situation.
BTM100 is widely used in Marine and stationary generation units with compact structure and easy installation.
PERFORMANCE AND CHARACTERISTICS:
1. Suit for dual-power supply system: DC24V，10A.
2. Automatically select power source.
3. According to the voltage situation select power supply. Choose V2 if both are available; and choose V1 if V2 is unavailable.
4. Corresponding LED indicators will display the situation of V1 and V2; meanwhile, relevant relays start output.
5. It is suit for different voltage environment of starter battery with wide power supply voltage and current range (voltage range: DC (18~35) V; current range: (0~10) A).
6. 35mm guide rail installation.
7. Modular design and pluggable connection terminals; compact structure with easy mounting.
