Technical Parameters:
Nominal AC Voltage AC (100～277)V
Max. AC Voltage AC (90～305)V
Max. Current 2A
Battery Voltage 24V
Rated Output Current 3A
Max. Output Power 81W
Working Temperature (-30～+55)ºC
Storage Temperature (-40～+85)ºC
Working Humidity 20%RH～93%RH (No Condensation)
Product Overview:

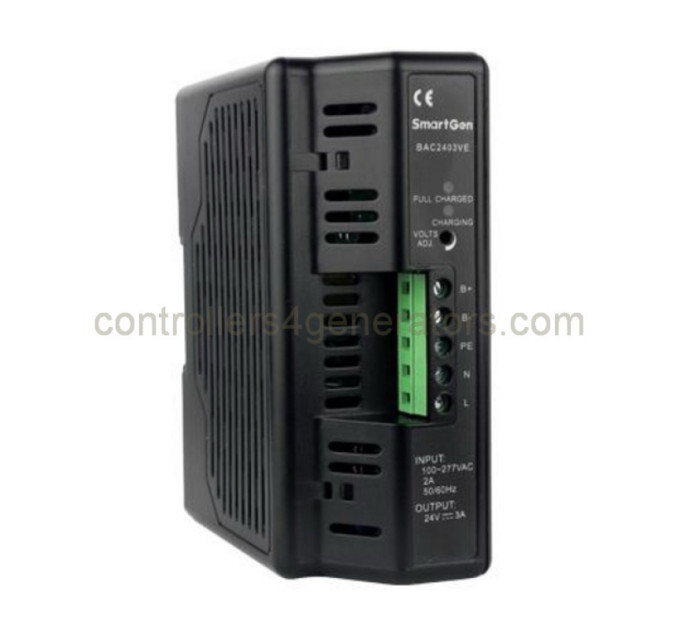

BAC2403VE switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge.
PERFORMANCE AND CHARACTERISTICS:
1. Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
2. Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;
3. With short circuit and reverse connection protection;
4. Charging voltage can be adjusted via potentiometer on the spot (breaking the connection between the batteries when adjusting);
5. LED display: charging indication and full charged indication;
6. Vertical type (35mm guide-rail way and screw fixed way) for installation and furthest decreased installation dimension
