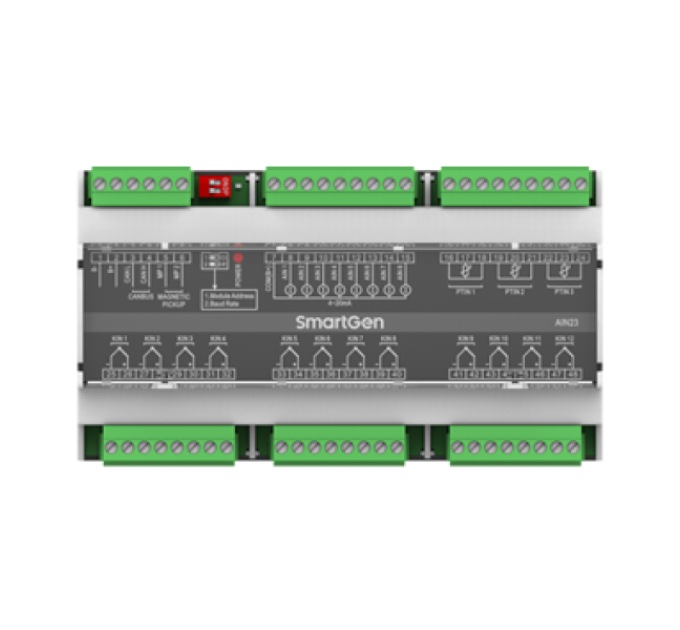

SmartGen AIN23 Analog input module

45 593 грн.

Available to order
Product Code: AIN23

45 593 грн. incl. VAT

Did you find a better price?

Technical Parameters:
DC Supply DC(8～35)V
Case Dimensions(mm) 161.6*93*60.7
Operating Temp. (-25~+70)°C
Weight 0.34kg

Product Overview:

AIN23 Analog Input Module is a module which has 12-way k-type thermocouple sensor, 3-way PT100 resistance type sensor, 8-way (4-20) mA current type sensor and 1-way speed sensor. The sampling data are transmitted to the master control via CANBUS.

PERFORMANCE AND CHARACTERISTICS

1. bit ARM based SCM, high integration of hardware and more reliable;
2. cision collection of various analog data;
3. CANBUS interface can connect with master controller, the sampling data (temperature, current, resistance, speed, etc.) are transmitted to the master controller via CANBUS;
4. BUS communication baud rate can be set as 250kbps or 125kbps;
5. ule CANBUS address can be set as 1 or 2;
6. e power supply range DC(8~35)V, suitable to different battery voltage environment;
7. ular design, flame-retardant ABS shell, pluggable terminal, compact structure, 35mm guide-rail mounting with easy installation.
